Rare Earth Pot – C/sunk Hole

Standard magnet characteristics

All Rare Earth Magnets are SILVER, any image variation is due to monitor, or photo interpretation.

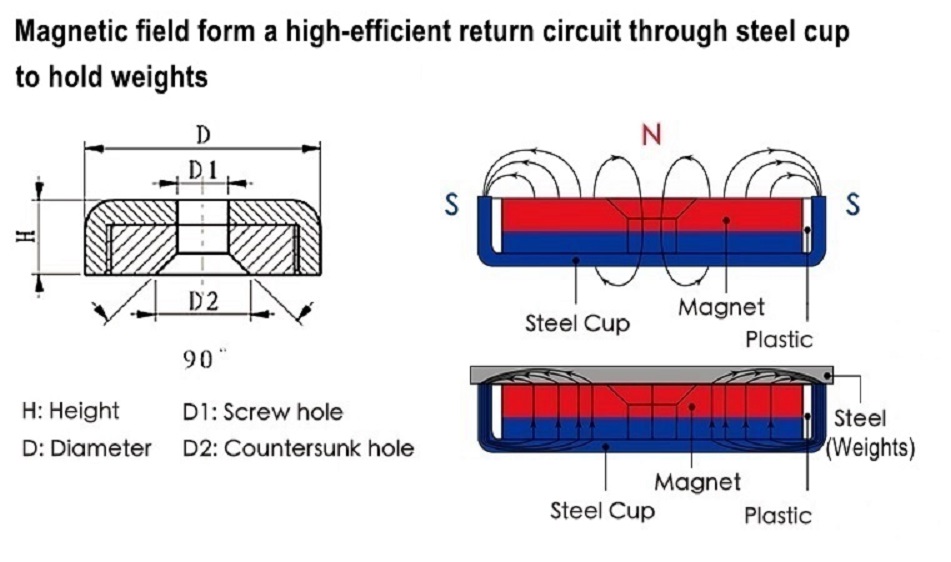

Diagram showing Holding Pot cross section

Temperature Range:
– 196°C / + 80°C

When choosing a fixing screw select an approprite size screw so that the screwhead fits snugly inside the countersunk hole and does not sit proud of the magnets surface, as this could interfere with the magnets performance.

Filter by:

Click on the product image to reveal quantity discounts

  •

    Rare Earth Pot D16mm x H5mm

    • Product Code: REPOTA16C/SUNK
    • Pull Force: 5 kgs
    • Base Diameter -D: 16mm
    • Total Height -H: 5mm
    • Hole Size -D1: 3.5mm
    • Direction of Magnetism: Axially magnetised through the 5mm Base
    • Style: Rare Earth pot magnet with countersunk hole
    • Grade: N35
    • Magnet Coating: Nickel ( NiCuNi  )

    $1.75 - $2.40 INC GST Add to cart

  • Rare Earth Pot D25mm x H6.75mm

    • Product Code: REPOTA25C/SUNK
    • Pull Force: 14 kgs
    • Base Diameter -D: 25mm
    • Total Height -H: 6.75mm
    • Hole Size -D1: 5.5mm
    • Direction of Magnetism: Axially magnetised through the 7mm Base
    • Style: Rare Earth pot magnet with countersunk hole
    • Grade: N35
    • Magnet Coating: Nickel ( NiCuNi  )

    $4.50 - $6.75 INC GST Add to cart

  • Rare Earth Pot D32mm x H7mm

    • Product Code: REPOTA32C/SUNK
    • Pull Force: 25 kgs
    • Base Diameter -D: 32mm
    • Total Height -H: 7mm
    • Hole Size -D1: 5.5mm
    • Direction of Magnetism: Axially magnetised through the 7mm Base
    • Style: Rare Earth pot magnet with countersunk hole
    • Grade: N35
    • Magnet Coating: Nickel ( NiCuNi  )

    $5.75 - $8.50 INC GST Add to cart

  • Rare Earth Pot D42mm x H9mm

    • Product Code: REPOTA42C/SUNK
    • Pull Force: 37 kgs
    • Base Diameter -D: 42mm
    • Total Height -H: 9mm
    • Hole Size -D1: 6.5mm
    • Direction of Magnetism: Axially magnetised through the 9mm Base
    • Style: Rare Earth pot magnet with countersunk hole
    • Grade: N35
    • Magnet Coating: Nickel ( NiCuNi  )

    $10.00 - $15.00 INC GST Add to cart

  • Rare Earth Pot D48mm x H10mm

    • Product Code: REPOTA48C/SUNK
    • Pull Force: 68 kgs
    • Base Diameter -D: 48mm
    • Total Height -H: 10mm
    • Hole Size -D1: 8.5mm
    • Direction of Magnetism: Axially magnetised through the 10mm Base
    • Style: Rare Earth pot magnet with countersunk hole
    • Grade: N35
    • Magnet Coating: Nickel ( NiCuNi  )
    • Magnet Strength Testing: https://youtube.com/shorts/olP8iMORJ6Y?feature=share
    $17.00 - $25.00 INC GST Add to cart

  • Rare Earth Pot D60mm x H15mm

    • Product Code: REPOTA60C/SUNK
    • Pull Force: 112 kgs
    • Base Diameter - D: 60mm
    • Total Height -H: 15mm
    • Hole Size -D1: 8.5mm
    • Direction of Magnetism: Axially magnetised through the 15mm Base
    • Style: Rare Earth pot magnet with countersunk hole
    • Grade: N35
    • Magnet Coating: Nickel ( NiCuNi  )

    $47.00 - $65.00 INC GST Add to cart

  • Rare Earth Pot D75mm x H15mm

    • Product Code: REPOTA75C/SUNK
    • Pull Force: 162 kgs
    • Base Diameter - D: 75mm
    • Total Height - H: 15mm
    • Hole Size - D1: 10.5mm
    • Direction of Magnetism: Axially magnetised through the 15mm Base
    • Style: Rare Earth pot magnet with countersunk hole
    • Grade: N35
    • Magnet Coating: Nickel ( NiCuNi  )
    $109.00 - $129.00 INC GST Add to cart
