Description

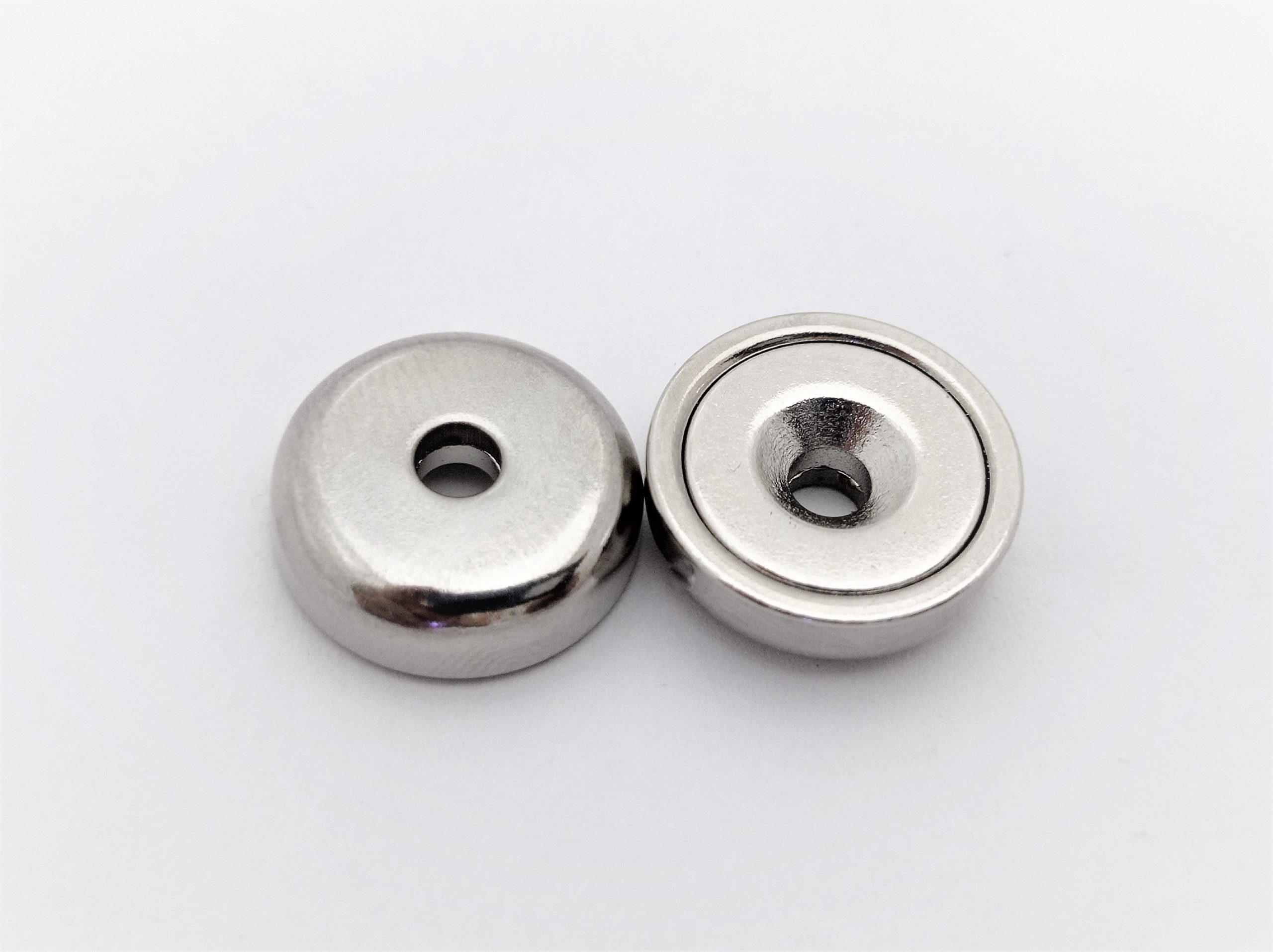

RARE EARTH C/S POT A16 x 5
$1.75 - $2.40 INC GST
- Product Code: REPOTA16C/SUNK
- Pull Force: 5 kgs
- Base Diameter -D: 16mm
- Total Height -H: 5mm
- Hole Size -D1: 3.5mm
- Direction of Magnetism: Axially magnetised through the 5mm Base
- Style: Rare Earth pot magnet with countersunk hole
- Grade: N35
- Magnet Coating: Nickel ( NiCuNi )
In stock
