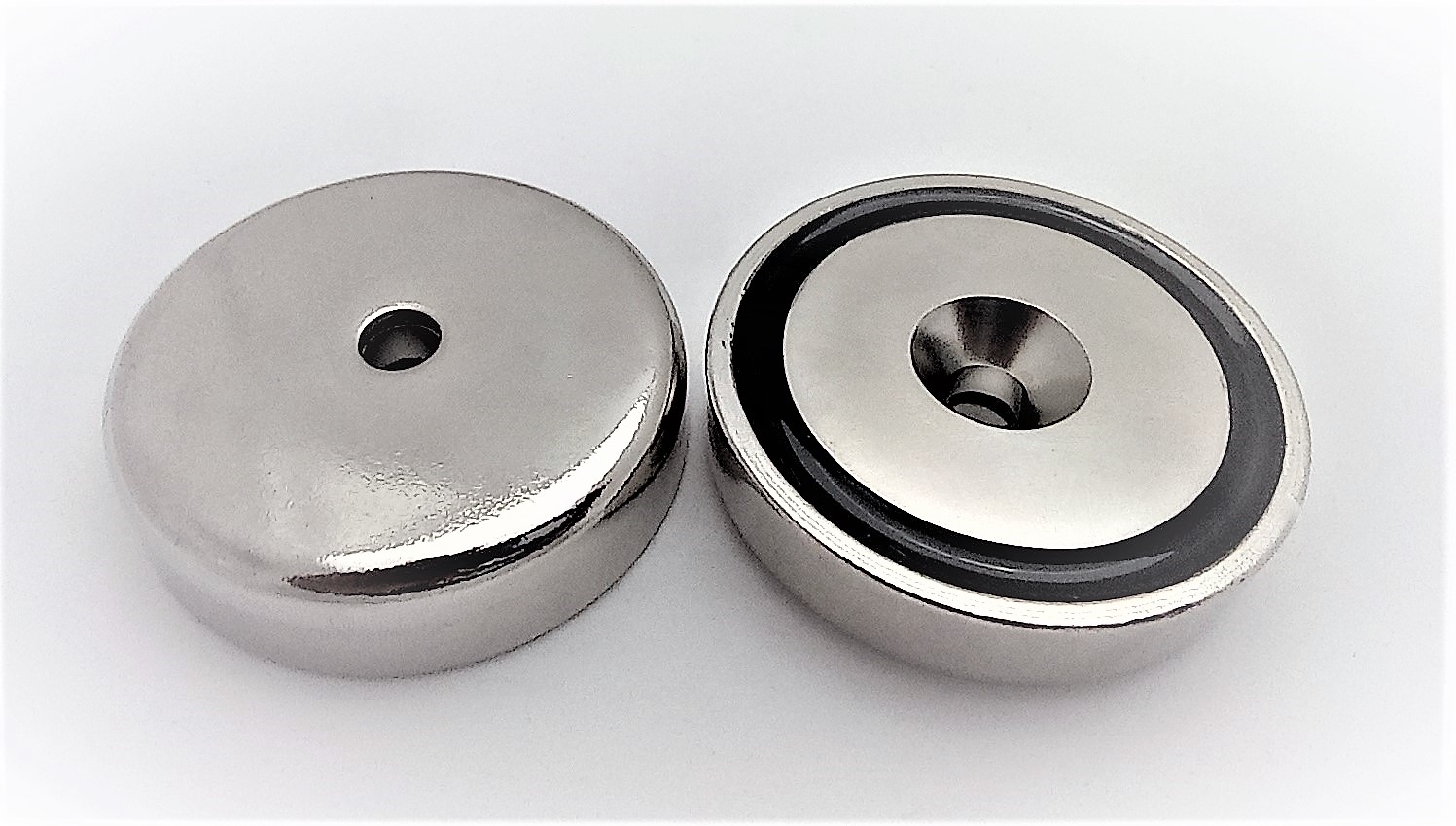

Rare Earth Pot D60mm x H15mm

Related products

•

  Rare Earth Pot D25mm x H6.75mm

  • Product Code: REPOTA25C/SUNK
  • Pull Force: 14 kgs
  • Base Diameter -D: 25mm
  • Total Height -H: 6.75mm
  • Hole Size -D1: 5.5mm
  • Direction of Magnetism: Axially magnetised through the 7mm Base
  • Style: Rare Earth pot magnet with countersunk hole
  • Grade: N35
  • Magnet Coating: Nickel ( NiCuNi  )


  $4.50 - $6.75 INC GST Add to cart
•

  Rare Earth Rod 3mm x 15mm

  • Product Code: RED315
  • Diameter: 3mm
  • Height: 15mm
  • Direction of Magnetism: Through Height
  • Pull Off Force: 362 gms
  • Gauss: 4000
  • Coating: Nickel ( NiCuNi )
  • Grade: N42
  $1.25 - $1.75 INC GST Add to cart
•

  Rare Earth Pot D42mm x H9mm

  • Product Code: REPOTA42C/SUNK
  • Pull Force: 37 kgs
  • Base Diameter -D: 42mm
  • Total Height -H: 9mm
  • Hole Size -D1: 6.5mm
  • Direction of Magnetism: Axially magnetised through the 9mm Base
  • Style: Rare Earth pot magnet with countersunk hole
  • Grade: N35
  • Magnet Coating: Nickel ( NiCuNi  )


  $10.00 - $15.00 INC GST Add to cart
•

  Pot D25 x H17 M5 Threaded Bos

  • Product Code: REPOTc25
  • Pull Force: 22 kgs
  • Base Diameter: 25mm
  • Base Height: 7.8mm
  • Total Height: 17mm
  • Bos Height: 9mm
  • Thread Size: M5
  • Direction of Magnetism: Axially magnetised through the 7.8mm Base
  • Style: Rare Earth pot magnet with metric 5mm threaded Bos
  • Grade: N35
  • Coating: Nickel ( NiCuNi  )


  $4.25 - $6.00 INC GST Add to cart
