iD5mm - iD9.5mm
-
RARE EARTH C/S POT A25 x 8
$6.75 INC GST- Product Code: REPOTA25C/SUNK
- Pull Force: 14 kgs
- Base Diameter -D: 25mm
- Total Height -H: 8mm
- Hole Size -D1: 5.5mm
- Direction of Magnetism: Axially magnetised through the 8mm Base
- Style: Rare Earth pot magnet with countersunk hole
- Grade: N35
- Magnet Coating: Nickel ( NiCuNi )
You save Add to cart -
RARE EARTH C/S POT A32 x 8
$8.50 INC GST- Product Code: REPOTA32C/SUNK
- Pull Force: 25 kgs
- Base Diameter -D: 32mm
- Total Height -H: 8mm
- Hole Size -D1: 5.5mm
- Direction of Magnetism: Axially magnetised through the 8mm Base
- Style: Rare Earth pot magnet with countersunk hole
- Grade: N35
- Magnet Coating: Nickel ( NiCuNi )
You save Add to cart -
RARE EARTH C/S POT A42 x 9
$15.00 INC GST- Product Code: REPOTA42C/SUNK
- Pull Force: 37 kgs
- Base Diameter -D: 42mm
- Total Height -H: 9mm
- Hole Size -D1: 6.5mm
- Direction of Magnetism: Axially magnetised through the 9mm Base
- Style: Rare Earth pot magnet with countersunk hole
- Grade: N35
- Magnet Coating: Nickel ( NiCuNi )
You save Add to cart -

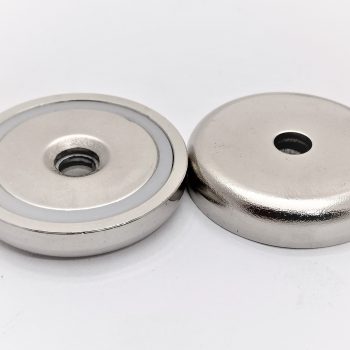

RARE EARTH C/S POT A48 x 10
$25.00 INC GST- Product Code: REPOTA48C/SUNK
- Pull Force: 68 kgs
- Base Diameter -D: 48mm
- Total Height -H: 10mm
- Hole Size -D1: 8.5mm
- Direction of Magnetism: Axially magnetised through the 10mm Base
- Style: Rare Earth pot magnet with countersunk hole
- Grade: N35
- Magnet Coating: Nickel ( NiCuNi )
- Magnet Strength Testing: https://youtube.com/shorts/olP8iMORJ6Y?feature=share
You save Add to cart -
RARE EARTH C/S POT D60 x 15
$65.00 INC GST- Product Code: REPOTA60C/SUNK
- Pull Force: 112 kgs
- Base Diameter - D: 60mm
- Total Height -H: 15mm
- Hole Size -D1: 8.5mm
- Direction of Magnetism: Axially magnetised through the 15mm Base
- Style: Rare Earth pot magnet with countersunk hole
- Grade: N35
- Magnet Coating: Nickel ( NiCuNi )
You save Add to cart -
NEO REBATED D48 x iD8.5 x T11
$22.00 INC GST- Product Code: REPOTB48REBATED
- Pull Force: 70 kgs
- Base Diameter: 48mm
- Total Height: 11mm
- Hole Size: 8.5mm
- Internal Flange Size: 15mm
- Direction of Magnetism: Axially magnetised through the 11mm Base
- Style: Rare Earth pot magnet with REBATED hole
- Grade: N35
- Coating: Nickel ( NiCuNi )
You save Add to cart -
NEO REBATED D60 x iD8.5 x T15
$65.00 INC GST- Product Code: REPOTB60REBATED
- Pull Force: 95 kgs
- Base Diameter: 60mm
- Total Height: 15mm
- Hole Size: 8.5mm
- Internal Flange Size: 15mm
- Direction of Magnetism: Axially magnetised through the 15mm Base
- Style: Rare Earth pot magnet with REBATED hole
- Grade: N35
- Coating: Nickel ( NiCuNi )
You save Add to cart -
Ring D12.7mm x iD3.5 x H3mm N
$3.50 INC GST- Product Code: RED12.7iD3.5H3N
- Outer Diameter: 12.7mm
- Internal Diameter: 3.5mm
- Height: 3mm
- Countersunk : Yes - North Face ( South pairing available )
- Direction of Magnetism: Through Height
- Pull Off Force: 2.6 kgs
- Gauss: 3000
- Coating: Nickel ( NiCuNi )
- Grade: N42
You save Select options This product has multiple variants. The options may be chosen on the product page -
Ring D12.7mm x iD3.5 x H3mm S
$3.50 INC GST- Product Code: RED12.7iD3.5H3S
- Outer Diameter: 12.7mm
- Internal Diameter: 3.5mm
- Height: 3mm
- Countersunk : Yes - South Face ( North Pairing is Available )
- Direction of Magnetism: Through Height
- Pull Off Force: 2.6 kgs
- Gauss: 3000
- Coating: Nickel ( NiCuNi )
- Grade: N42
You save Select options This product has multiple variants. The options may be chosen on the product page
