Description

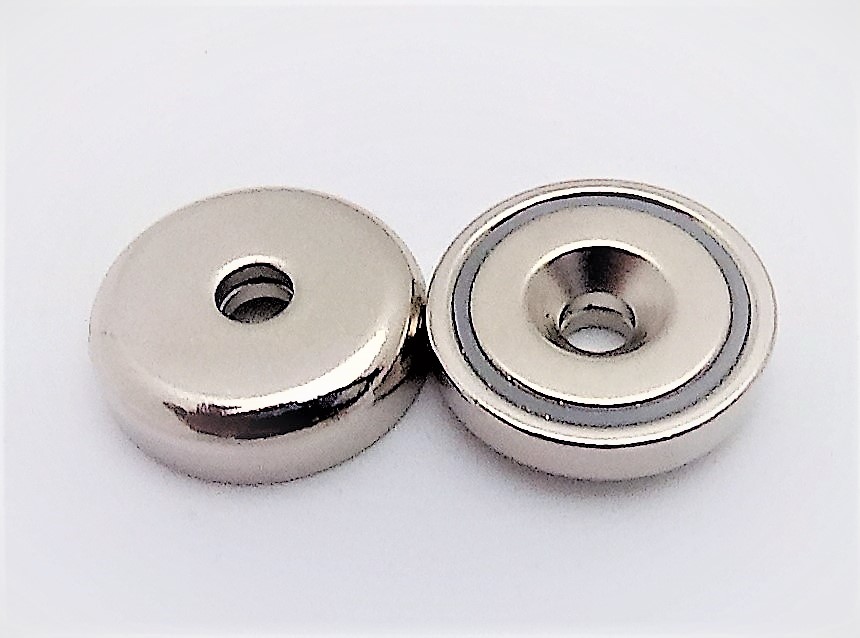

Rare Earth Pot D25mm x H6.75mm
$4.50 - $6.75 INC GST
- Product Code: REPOTA25C/SUNK
- Pull Force: 14 kgs
- Base Diameter -D: 25mm
- Total Height -H: 6.75mm
- Hole Size -D1: 5.5mm
- Direction of Magnetism: Axially magnetised through the 7mm Base
- Style: Rare Earth pot magnet with countersunk hole
- Grade: N35
- Magnet Coating: Nickel ( NiCuNi )
In stock
