Description

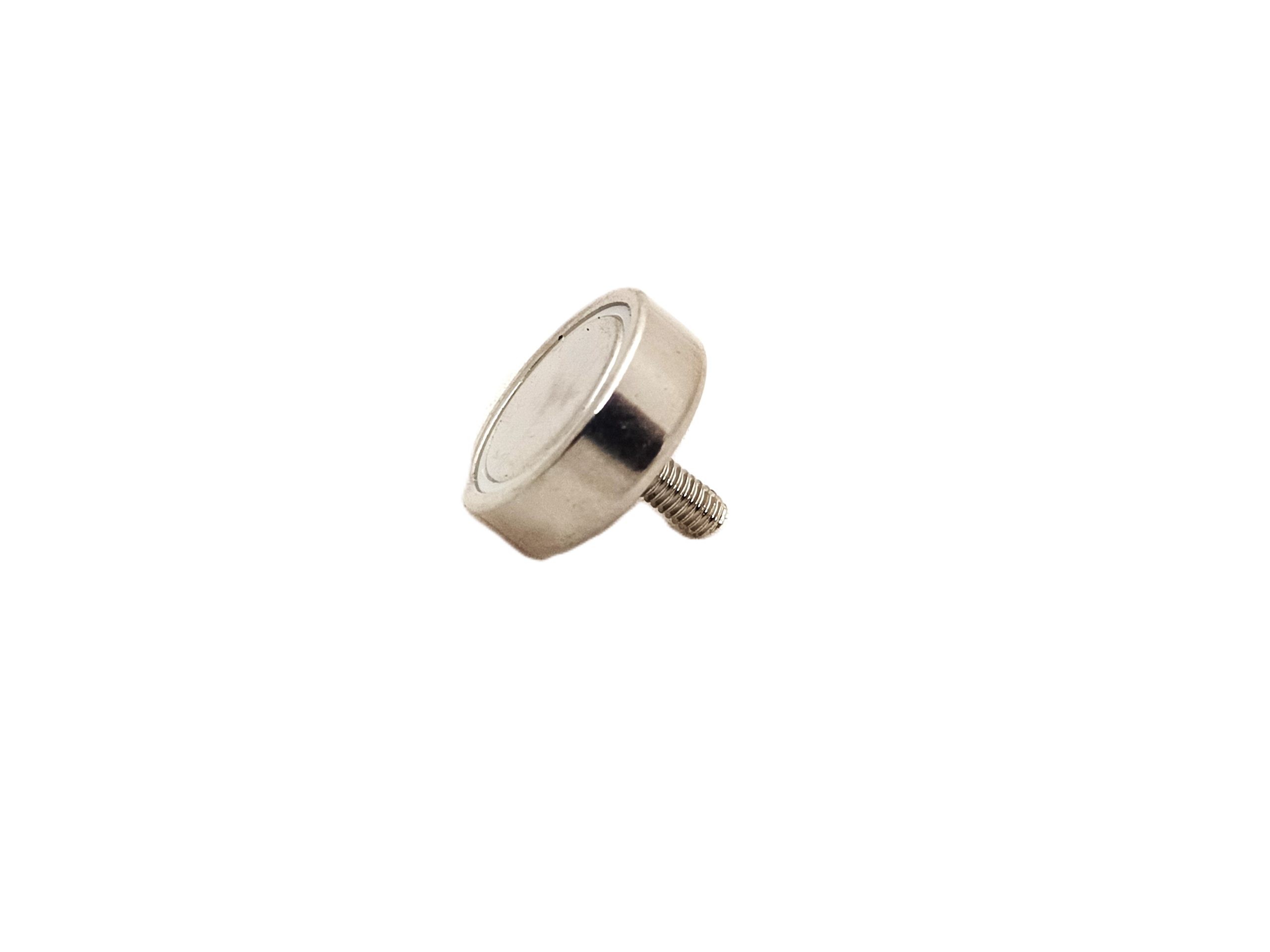

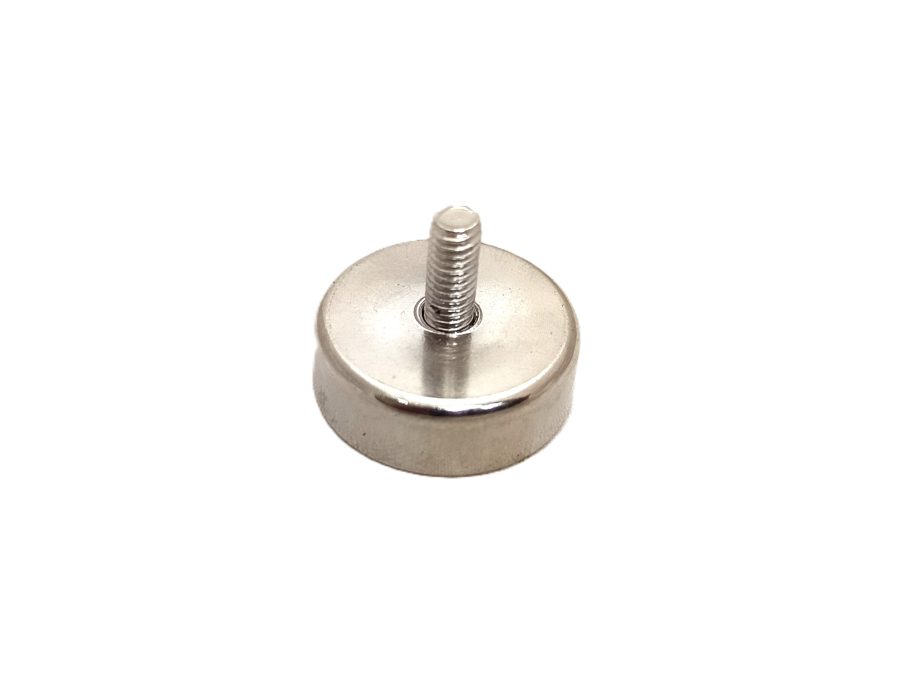

REPOTC20 x 15 M4 Threaded Bos
$2.75 - $4.25 INC GST
- Product Code: REPOTc20
- Pull Force: 12 kgs
- Base Diameter: 20mm
- Base Height: 6.2mm
- Total Height: 16.2mm
- Bos Height: 9mm
- Thread Size: M4
- Direction of Magnetism: Axially magnetised thru the 6.2mm Base
- Style: Rare Earth pot magnet with metric 4mm threaded Bos
- Grade: N35
- Coating: Nickel ( NiCuNi )
In stock
