  • Pot D16 x H13 M4 Threaded Bos

    • Product Code: REPOTc16
    • Pull Force: 5.5 kgs
    • Base Diameter: 16mm
    • Base Height: 5.2mm
    • Total Height: 13mm
    • Bos Height: 8mm
    • Thread Size: M4
    • Direction of Magnetism: Axially magnetised thru the 5mm Base
    • Style: Rare Earth pot magnet with metric 4mm threaded Bos
    • Grade: N35
    • Coating: Nickel ( NiCuNi  )

    $1.95 - $2.75 INC GST Add to cart
  • Pot D20 x H16 M4 Threaded Bos

    • Product Code: REPOTc20
    • Pull Force: 12 kgs
    • Base Diameter: 20mm
    • Base Height: 6.2mm
    • Total Height: 16.2mm
    • Bos Height: 9mm
    • Thread Size: M4
    • Direction of Magnetism: Axially magnetised thru the 6.2mm Base
    • Style: Rare Earth pot magnet with metric 4mm threaded Bos
    • Grade: N35
    • Coating: Nickel ( NiCuNi  )

    $2.75 - $4.50 INC GST Add to cart
  • HOOK POT D16mm x 5mm x M4

    • Product Code: REPOTE16HOOK
    • Pull Force: 5.5 kgs
    • Base Diameter: 16mm
    • Total Height: 40mm
    • Hook Thread: M4
    • Direction of Magnetism: Axially magnetised through the 5mm Base
    • Style: Rare Earth pot magnet with removable threaded hook
    • Magnet Coating: Nickel ( NiCuNi  )
    $2.30 - $3.30 INC GST Add to cart

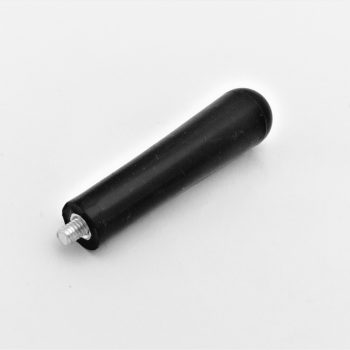

  • REHANDLEM4 – Plastic Handle

    • Product Code: REHANDLEM4
    • Handle Length : 58mm ( not including threaded bos )
    • Bos Length: 5mm
    • Handle Width: 15mm at its widest
    • Thread Size: M4
    • Handle colour: Black
    • Uses: Can be screwed into these types of magnets that have a female threaded Post ( of the same metric size ), to create your own combo ... Rare Earth pot magnets like Hooks,Eyelets or Rubber Coated Pots. See Images.

    $1.00 - $1.35 INC GST Add to cart
  • HOOK POT D20mm x 7mm x M4

    • Product Code: REPOTE20HOOK
    • Pull Force: 12 kgs
    • Base Diameter: 20mm
    • Total Height: 37mm
    • Hook Thread: M4
    • Direction of Magnetism: Axially magnetised through the 7mm Base
    • Style: Rare Earth pot magnet with threaded hook
    • Magnet Coating: Nickel ( NiCuNi  )
    $3.20 - $5.50 INC GST Add to cart
  • 6mm BOS D22mm x h6.2mm x M4

    • Product Code: RERUBBOSD22
    • Pull Force: 5 kgs
    • Base Size: D22mm x h6.2mm
    • Total Height=H: 12.2mm ( incl. 6mm threaded post )
    • Post Thread: M4
    • Style: Rubber Coated Rare Earth pot magnet with M4 external threaded post( bos )
    • Coating: Rubber
      Features: Rubber Coated Pots are best used in a shear position, rubber coated pot magnets have a superior slide resistance over regular magnets due to the increased friction generated between a rubber and smooth steel surface.
    $3.85 - $4.95 INC GST Add to cart
  • 6mm BOS D34mm x h8.2mm x M4

    • Product Code: RERUBBOSD34
    • Pull Force: 7.7 kgs
    • Base Size: D34mm x h8.2mm
    • Total Height=H: 14.2mm ( incl. 6mm threaded post )
    • Post Thread: M4
    • Style: Rubber Coated Rare Earth pot magnet with M4 external threaded post( bos )
    • Coating: Rubber
      Features: Rubber Coated Pots are best used in a shear position, rubber coated pot magnets have a superior slide resistance over regular magnets due to the increased friction generated between a rubber and smooth steel surface.
    $5.00 - $6.75 INC GST Add to cart
  • EYELET POT D16mm x 5mm x M4

    • Product Code: REPOTF16EYELET
    • Pull Force: 5.5 kgs
    • Base Diameter: 16mm
    • Total Height: 35mm
    • Eyelet Thread: M4
    • Direction of Magnetism: Axially magnetised thru the 5mm Base
    • Style: Rare Earth pot magnet with removable threaded eyelet
    • Coating: Nickel ( NiCuNi  )
    $2.20 - $3.30 INC GST Add to cart
