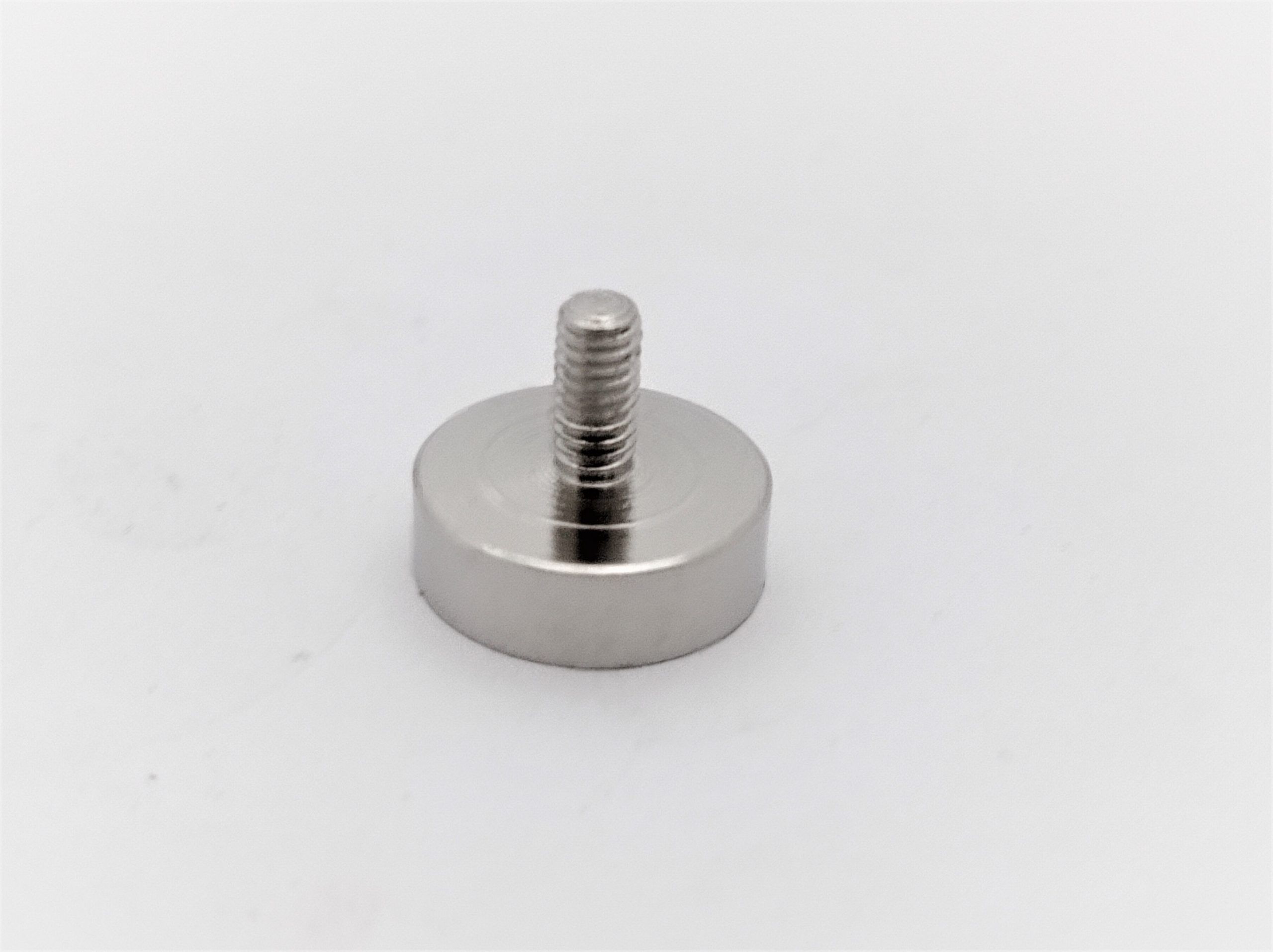

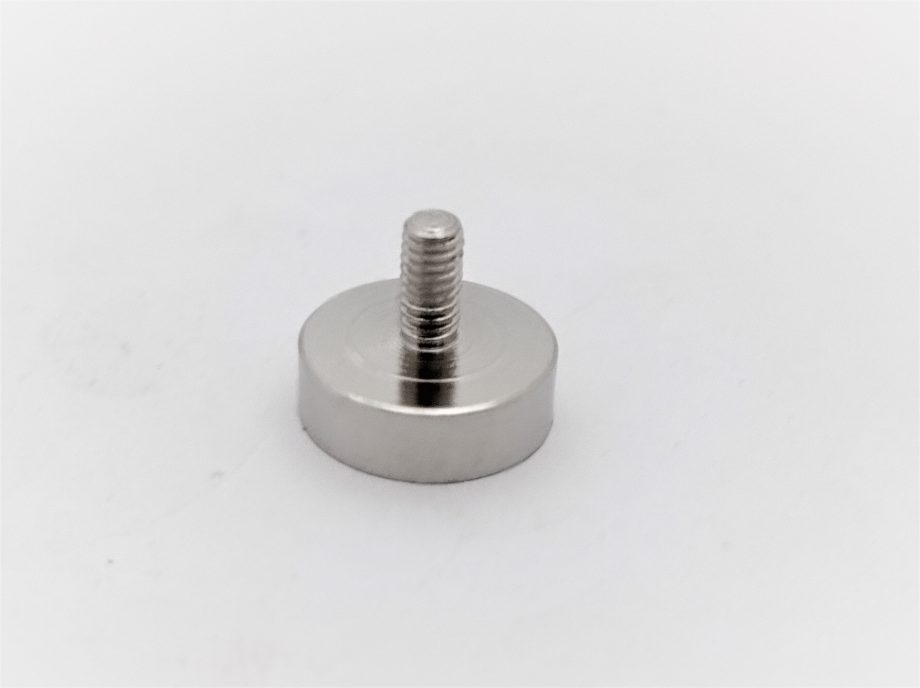

Pot D16 x H13 M4 Threaded Bos
Pot D16 x H13 M4 Threaded Bos
Pot D16 x H13 M4 Threaded Bos
Pot D16 x H13 M4 Threaded Bos


Pot D16 x H13 M4 Threaded Bos

$1.95 - $2.75 INC GST

  • Product Code: REPOTc16
  • Pull Force: 5.5 kgs
  • Base Diameter: 16mm
  • Base Height: 5.2mm
  • Total Height: 13mm
  • Bos Height: 8mm
  • Thread Size: M4
  • Direction of Magnetism: Axially magnetised thru the 5mm Base
  • Style: Rare Earth pot magnet with metric 4mm threaded Bos
  • Grade: N35
  • Coating: Nickel ( NiCuNi  )

In stock

Quantity Discount (%) Price
1 - 19 — $2.75
20 - 99 12.73 % $2.40
100+ 29.09 % $1.95
x
SKU: REPOTC16 Category: Tags: , , ,


Description

Additional information

Weight 0.008 kg
