Rare Earth Pot Hook

Standard magnet characteristics

All Rare Earth Magnets are SILVER, any image variation is due to monitor, or photo interpretation.

Holding Pot Cross Section:

Holding Pots must come into contact with the Steel Targets surface to achieve its full holding power potential (Pull Force kgs). If there is any obstruction between the magnet and the steel target, like even a thin wood veneer, the holding power can be greatly reduced, also the connection should be even across the entire diameter of the magnets base, avoiding high spots like weld seams, screw heads or rivets where possible.

Temperature Range:
– 196Ā°C / + 80Ā°C

Holding Pot – Hook
The metal pot that the magnet is set into, protects the magnet and also directs both North and South poles in the same one direction, which is why holding pots are a great solution where extra magnetic holding power is required.

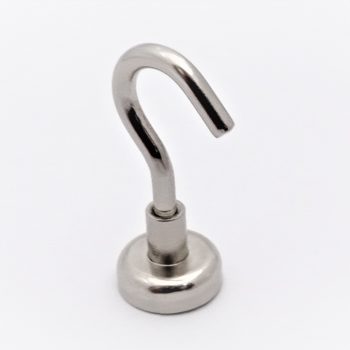

  • HOOK POT D16mm x 5mm x M4

    • Product Code: REPOTE16HOOK
    • Pull Force: 5.5 kgs
    • Base Diameter: 16mm
    • Total Height: 40mm
    • Hook Thread: M4
    • Direction of Magnetism: Axially magnetised through the 5mm Base
    • Style: Rare Earth pot magnet with removable threaded hook
    • Magnet Coating: Nickel ( NiCuNiĀ  )
    $2.30 - $3.30 INC GST Add to cart

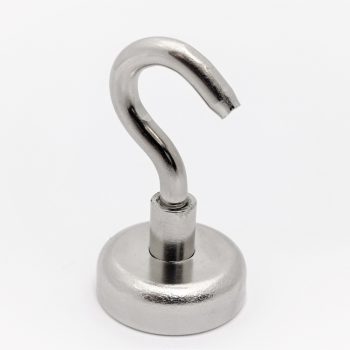

  • HOOK POT D25mm x 7mm x M4

    • Product Code: REPOTE25HOOK
    • Pull Force: 22 kgs
    • Base Diameter: 25mm
    • Total Height: 45mm
    • Hook Thread: M4
    • Direction of Magnetism: Axially magnetised through the 7mm Base
    • Style: Rare Earth pot magnet with threaded hook
    • Magnet Coating: Nickel ( NiCuNiĀ  )
    $4.00 - $7.25 INC GST Add to cart

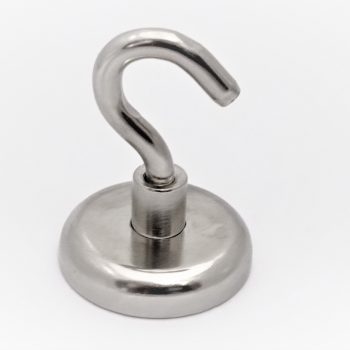

  • HOOK POT D36mm x 7mm x M6

    • Product Code: REPOTE36HOOK
    • Pull Force: 41 kgs
    • Base Diameter: 36mm
    • Total Height: 47mm
    • Hook Thread: M6
    • Direction of Magnetism: Axially magnetised through the 7mm Base
    • Style: Rare Earth pot magnet with removable threaded hook
    • Magnet Coating: Nickel ( NiCuNiĀ  )
    $7.70 - $12.50 INC GST Add to cart

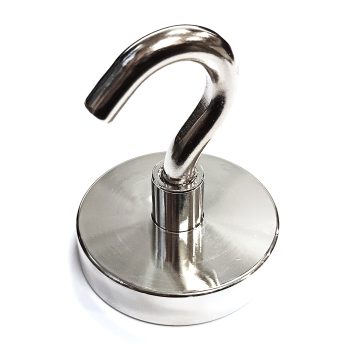

  • HOOK POT D48mm x 11mm x M8

    • Product Code: REPOTE48HOOK
    • Pull Force: 81 kgs
    • Base Diameter: 48mm
    • Total Height: 70mm
    • Hook Thread: M8
    • Direction of Magnetism: Axially magnetised through the 11mm Base
    • Style: Rare Earth pot magnet with removable threaded hook
    • Magnet Coating: Nickel ( NiCuNiĀ  )
    $18.00 - $29.00 INC GST Add to cart

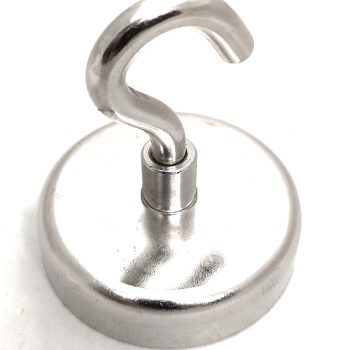

  • HOOK POT D60mm x 15mm x M8

    • Product Code: REPOTE60HOOK
    • Pull Force: 113 kgs
    • Base Diameter: 60mm
    • Total Height: 76mm
    • Hook Thread: M8
    • Direction of Magnetism: Axially magnetised through the 18mm Base
    • Style: Rare Earth pot magnet with removable threaded hook
    • Magnet Coating: Nickel ( NiCuNiĀ  )
    $54.00 - $66.00 INC GST Add to cart

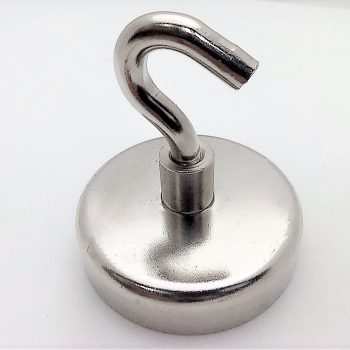

  • HOOK POT D75mm x 18mm x M10

    • Product Code: REPOTE75HOOK
    • Pull Force: 164 kgs
    • Base Diameter: 75mm
    • Total Height: 80mm
    • Hook Thread: M10
    • Direction of Magnetism: Axially magnetised through the 35mm Base
    • Style: Rare Earth pot magnet with removable threaded hook
    • Magnet Coating: Nickel ( NiCuNiĀ  )
    $94.00 - $110.00 INC GST Add to cart

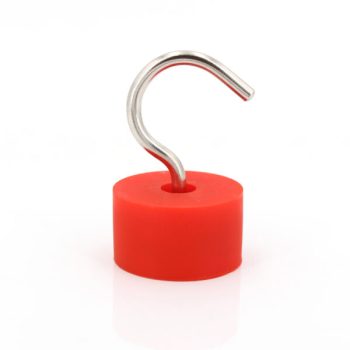

  • Rubber Coated Stud Finder

    • Product Code: MAGSTUDLSED45
    • Pull Force: 50 kgs
    • Magnet Type: Neodymium D29mm x 23mm
    • Total Base Diameter: D45mm x H25.5mm
    • Total Height: 75mm including hook
    • Hook Thread: M6
    • Direction of Magnetism: Axially magnetised thru the 25.5mm Base
    • Style: Rubber Encased pot magnet with removable threaded hook
    • Magnet Coating:Ā Nickel ( NiCuNiĀ  )
    $14.00 - $19.00 INC GST Add to cart
