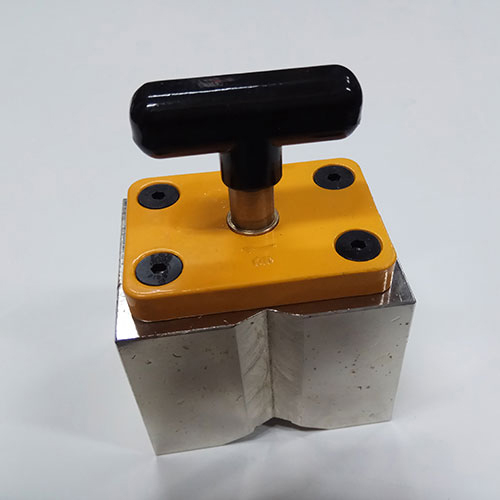

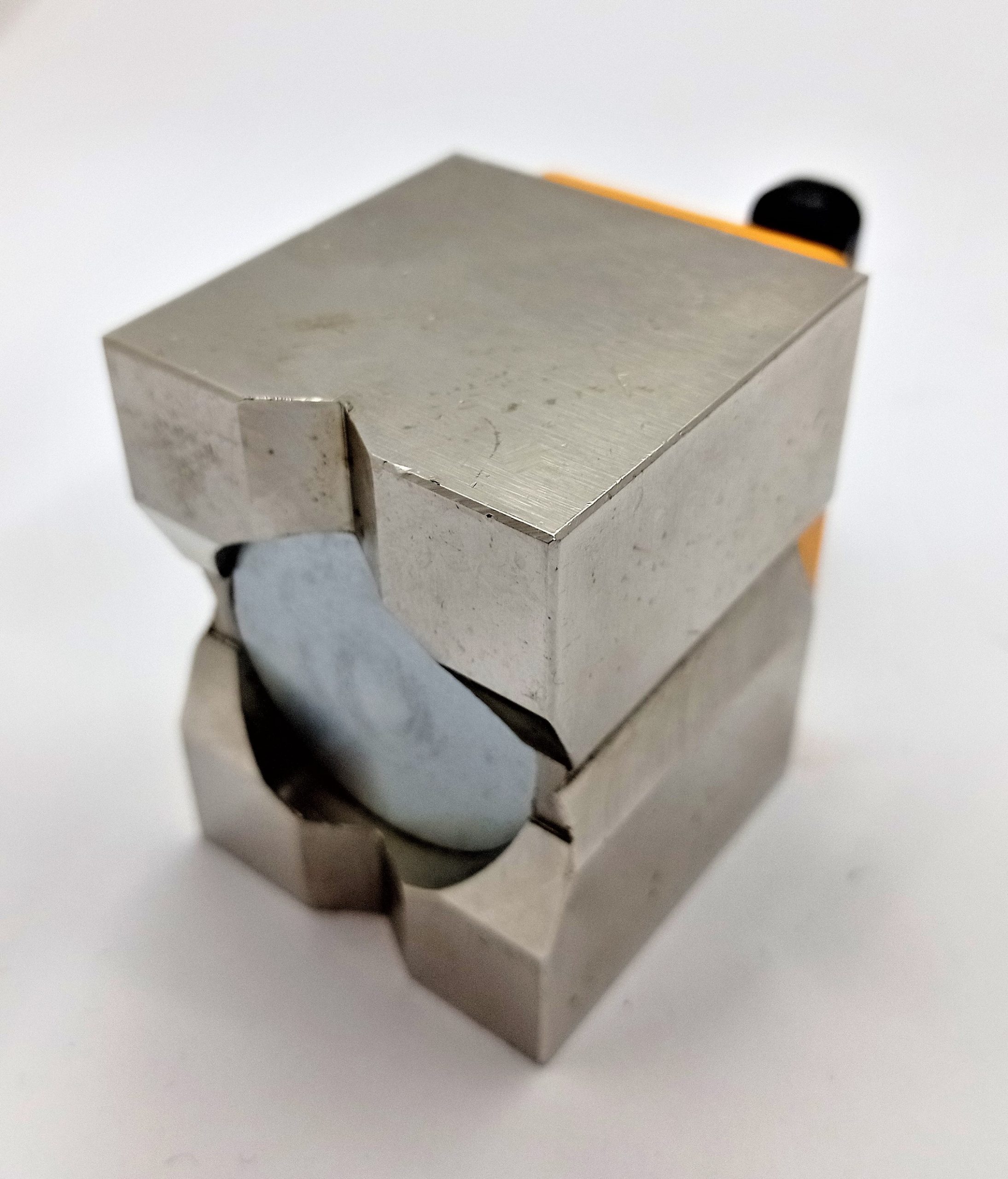

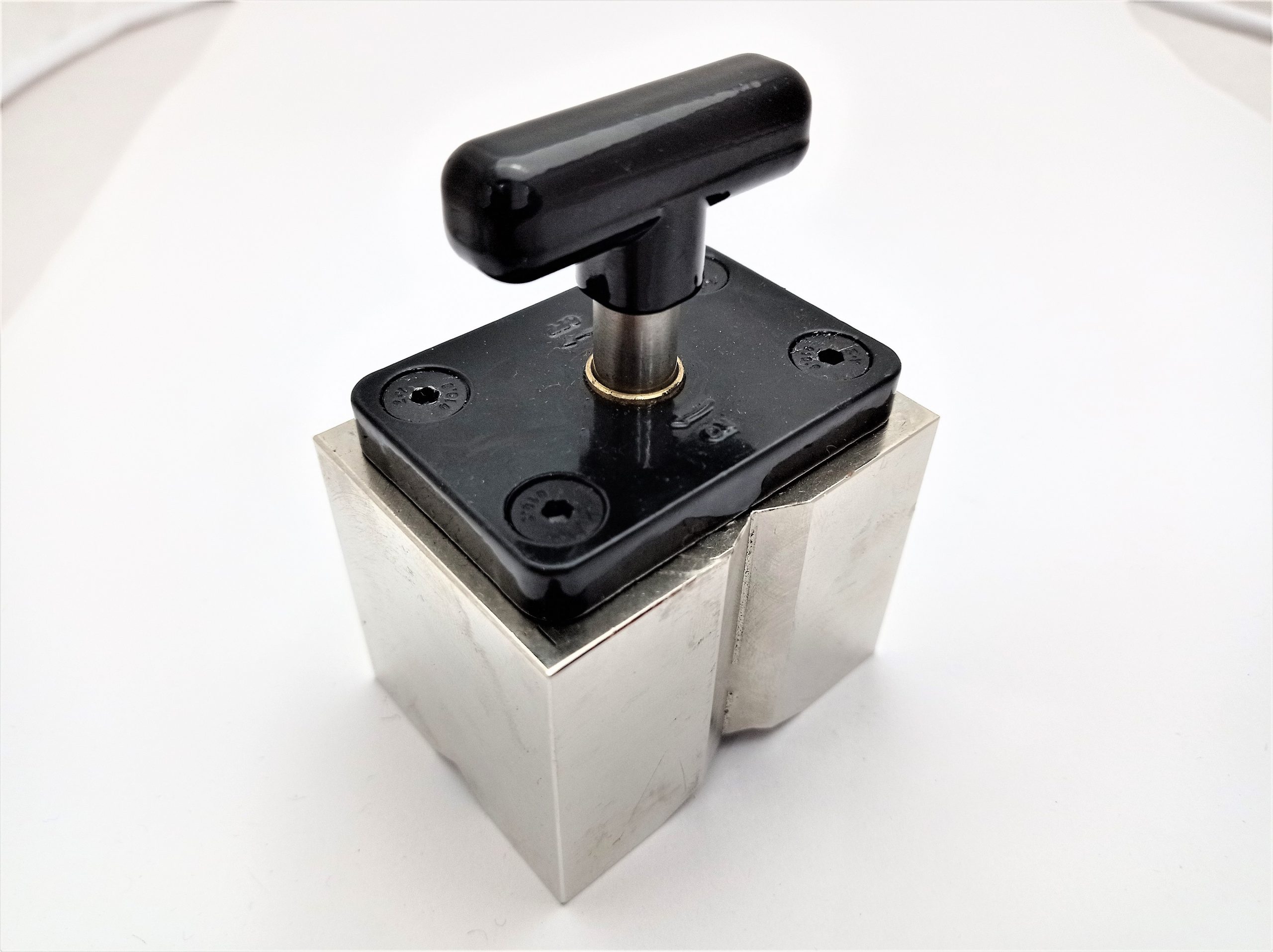

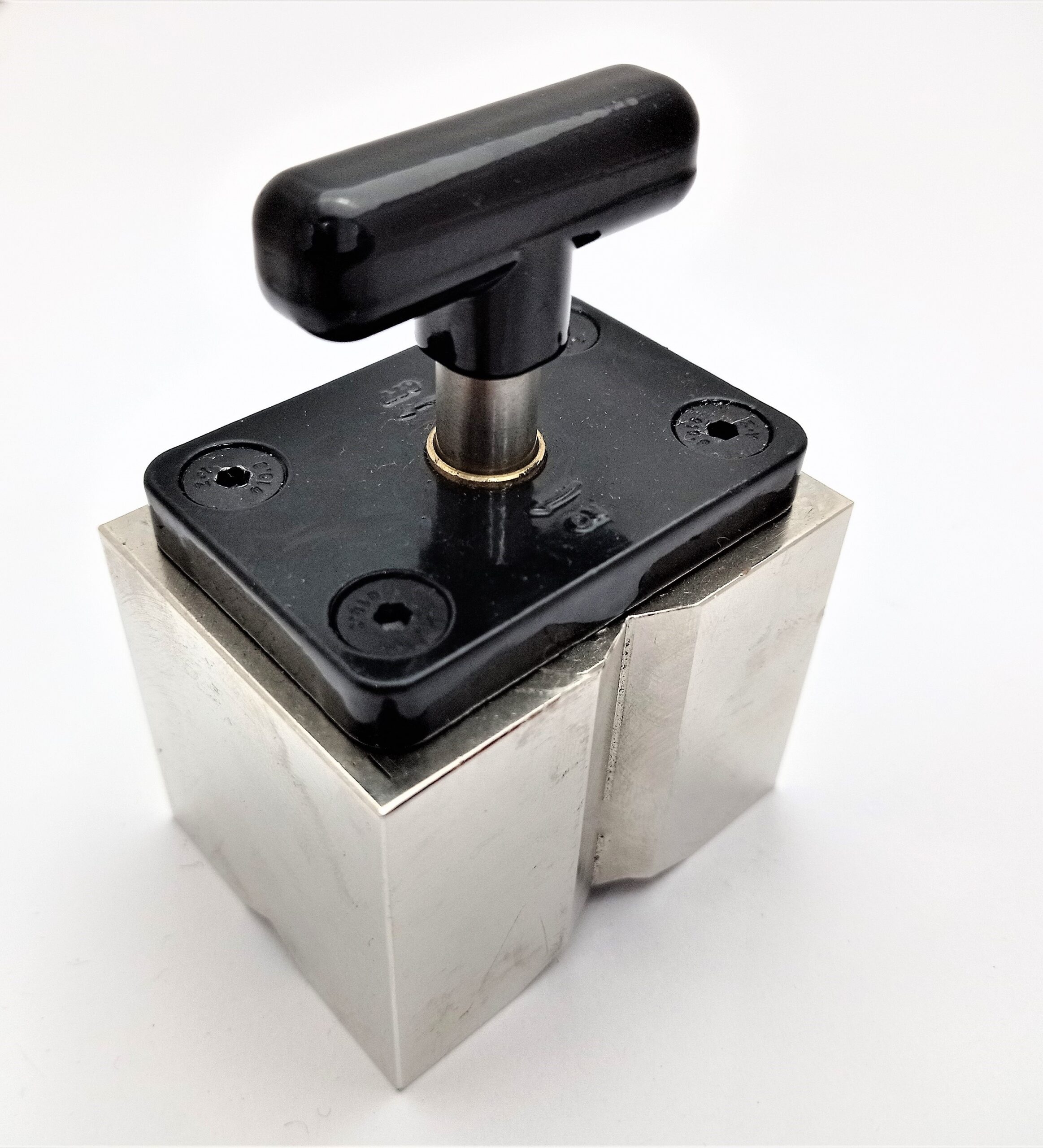

NSM185 – Switch Magnet

$219.00 INC GST

    • Product Code: NSM185
    • Pull Off Force: 185 kgf ( against 5mm minimum thickness steel )
    • Total Length: 64mm
    • Total Width: 48mm
    • Height: 58mm ( including handle =93mm )
    • Style: Neodymium Switchable Clamp

In stock

x
SKU: NSM185 Categories: , Tags: , ,


Description

Features:

  • Powerful Magnetic Hold
  • Magnetic grip on 5 sides
  • Mounts anywhere – no limitations like clamps
  • Fast precise positioning
  • Machined at 90 degrees
  • Super fast set ups and instant clamping
  • Mounts to flat tube,bar or pipe
  • Turn off to release metal swarf

Additional information

Weight 0.85 kg

Related products

  •

    MSW300 – Switch/Lift Magnet

    • Product Code: MSW300
    • Rated Lift Capacity: 100 kg ( against 10mm min thick steel )
    • Pull Off Force Gear I: 25 kgf ( against 10mm min thick steel )
    • Pull Off Force Gear II: 300 kgf ( against 10mm min thick steel )
    • Total Length: 142mm ( including side handle which adds 77mm when screwed in )
    • Total Width: 90mm
    • Total Height: 123mm ( including black lifting lug )
    • Side Threaded Holes : M6 x 4
    • Style: Neodymium Switchable Base Holder
    $139.00 INC GST Add to cart

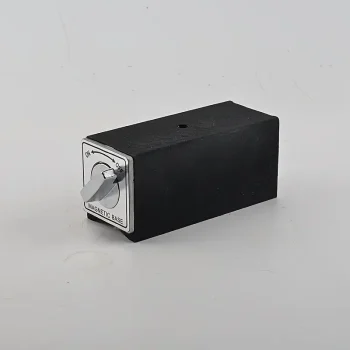

  • NSM60 – Switch Magnet

    • Product Code: NSM60
    • Pull Off Force: 60 kgf ( against 5mm minimum thickness steel )
    • Total Length: 50mm
    • Total Width: 32mm
    • Total Height: 55mm ( including handle =70mm )
    • Pre-tapped Mounting holes: M4
    • Style: Neodymium Switchable Base Holder
    $89.00 INC GST Add to cart

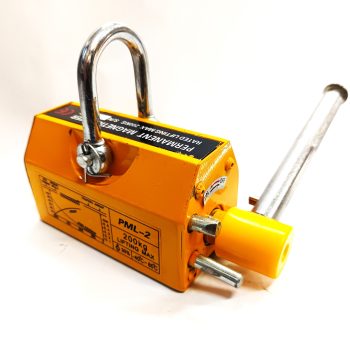

  • Maglift200-Lift Magnet 200kg
