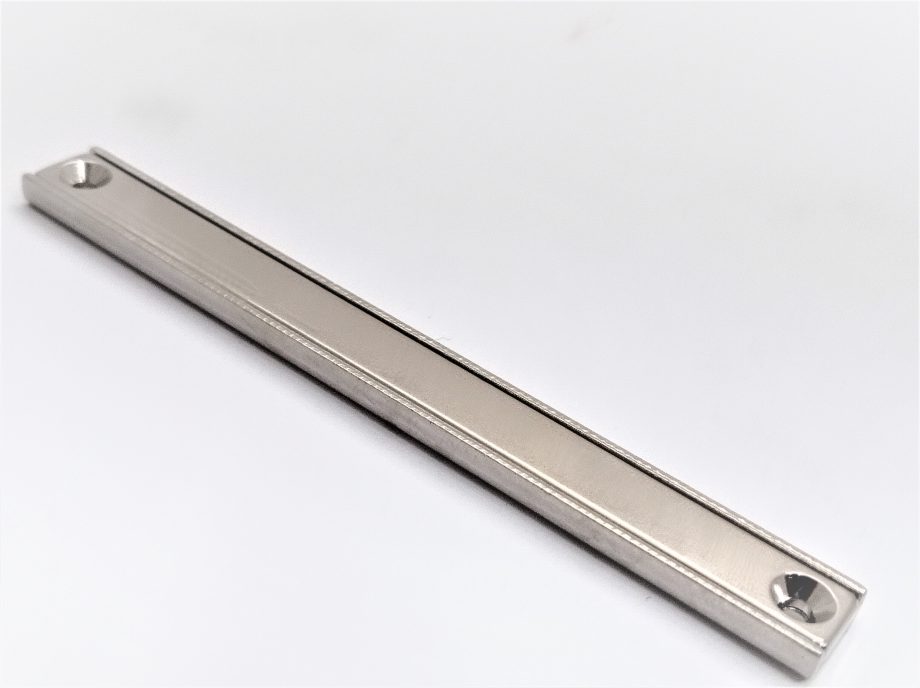

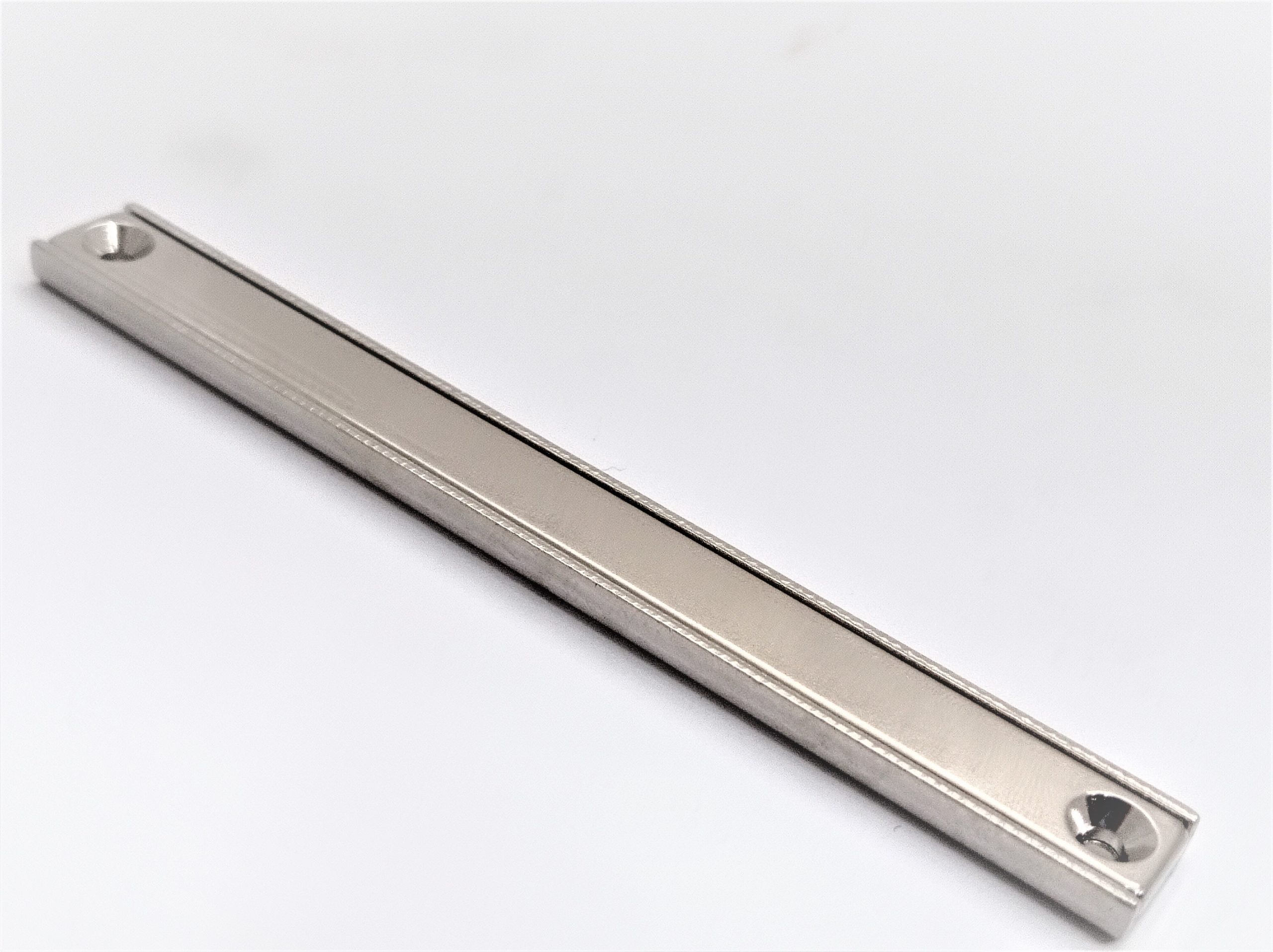

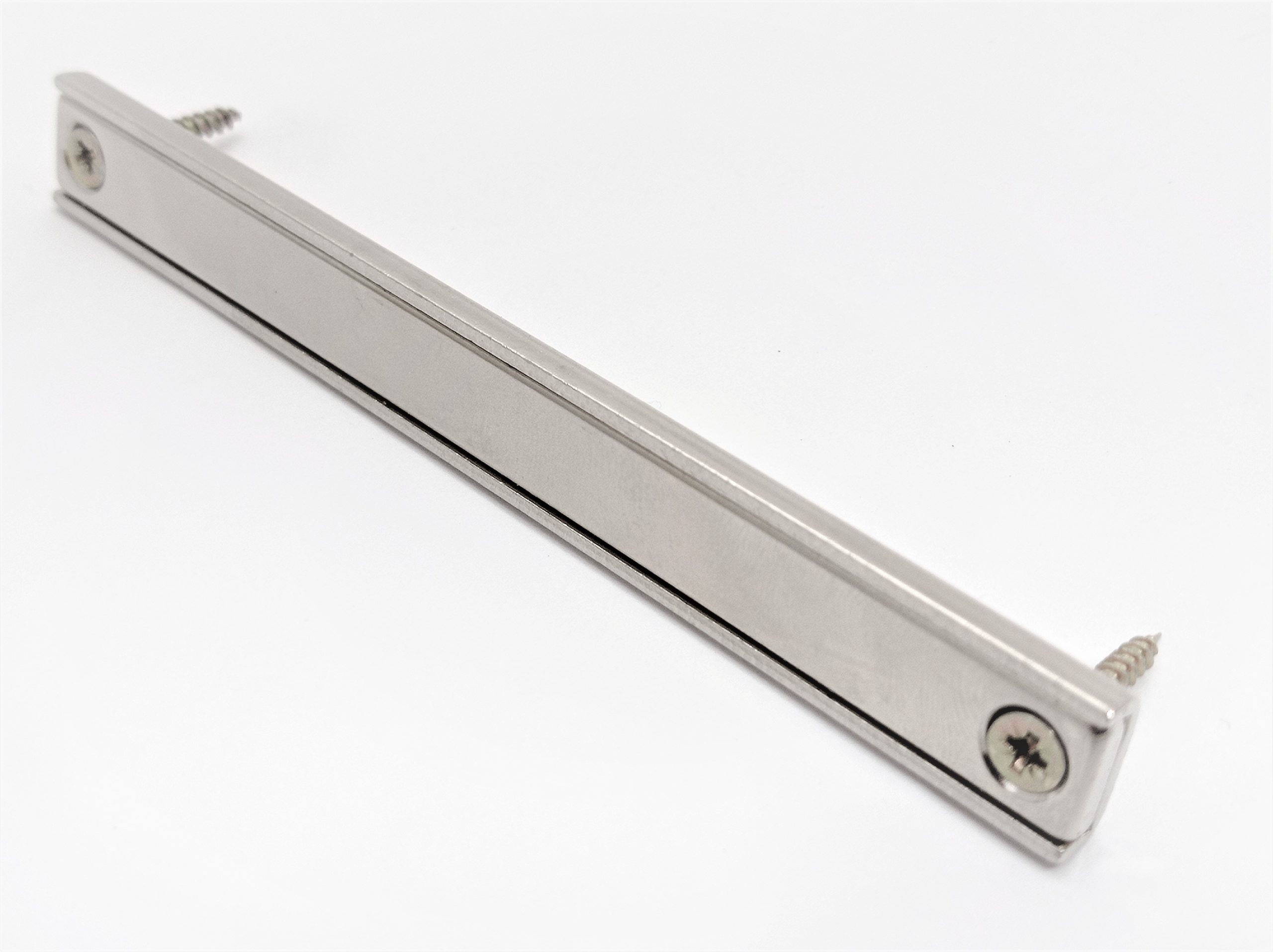

MAGCHAN120mm x 13.5mm x 5mm

$12.50 - $17.00 INC GST

  • Product Code: MAGCHAN120
  • L=Length: 120mm
  • L1=Hole centres: 110mm
  • W=Width: 13.5mm
  • H=Height: 5mm
  • D1=Fixing Holes: 3.3mm id with countersunk
  • Direction of Magnetism: Through 5 mm Height ( countersunk side only )
  • Pull Off Force: 40 kgs
  • Coating: Nickel ( NiCuNi )
  • Grade: N35

In stock

Quantity Price
1 - 9 $17.00
10 - 49 $14.00
50 - 99 $13.25
100+ $12.50
x
SKU: MAGCHAN120 Categories: , Tags: , , , , ,


Additional information

Weight 0.056 kg

Related products

  •

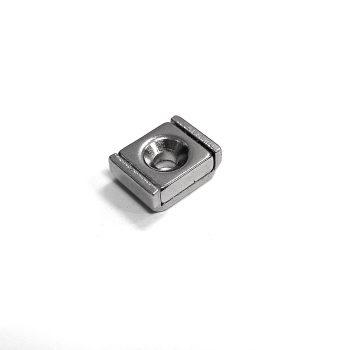

    MAGCHAN20- 20mm x 13.5mm x 5mm

    • Product Code: MAGCHAN20
    • L=Length: 20mm
    • W=Width: 13.5mm
    • H=Height: 5mm
    • D1=Fixing Holes: 3.3mm iD with countersunk
    • Direction of Magnetism: Through 5 mm Height ( countersunk side only )
    • Pull Off Force: 8 kgs
    • Coating: Nickel ( NiCuNi )
    • Grade: N35
    $3.85 - $5.50 INC GST Add to cart

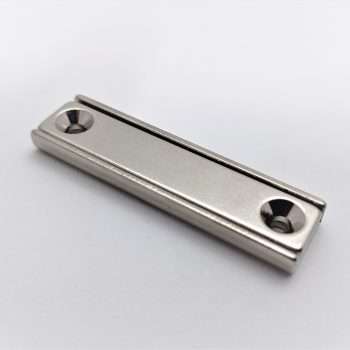

  • MAGCHAN40- 40mm x 13.5mm x 5mm
