M6 Thread

Filter

Showing all 9 results

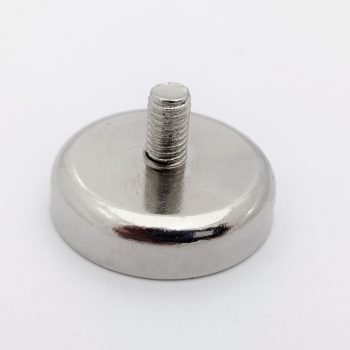

REPOTC32 x 18 M6 Threaded Bos
- Product Code: REPOTc32
- Pull Force: 34 kgs
- Base Diameter: 32mm
- Base Height: 8mm
- Total Height: 18mm
- Bos Height: 10mm
- Thread Size: M6
- Direction of Magnetism: Axially magnetised through the 8mm Base
- Style: Rare Earth pot magnet with metric 6mm threaded Bos
- Grade: N35
- Coating: Nickel ( NiCuNi )
$8.00 INC GST
You save Add to cart

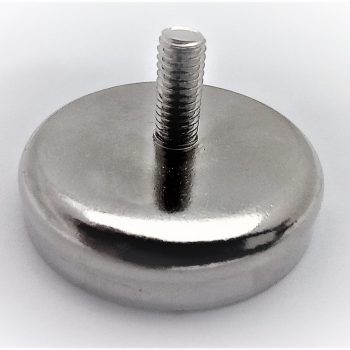

REPOTC42 x 20 M6 Threaded Bos
- Product Code: REPOTc42
- Pull Force: 68 kgs
- Base Diameter: 42mm
- Base Height: 9mm
- Total Height: 23mm
- Bos Height: 14mm
- Thread Size: M6
- Direction of Magnetism: Axially magnetised thru the 9mm Base
- Style: Rare Earth pot magnet with metric 6mm threaded Bos
- Grade: N35
- Coating: Nickel ( NiCuNi )
$16.00 INC GST
You save Add to cart

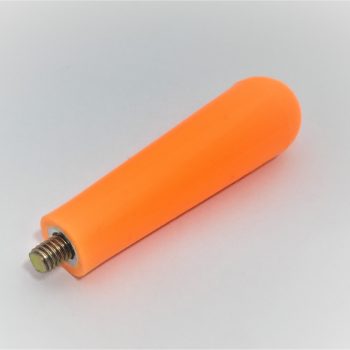

ORANGE HANDLE M6
- Product Code: REHANDLEM6
- Handle Length : 70mm ( not including threaded bos )
- Bos Length: 8mm
- Handle Width: 20mm at its widest
- Thread Size: M6
- Handle colour: Black
- Uses: Can be screwed into these types of magnets that have a female threaded Post ( of the same metric size ), to create your own combo ... Rare Earth pot magnets like Hooks,Eyelets or Rubber Coated Pots. See Images.
$1.65 INC GST
You save Add to cart
HOOK D36 x 7 – 19mm Post
- Product Code: REPOTE36HOOK
- Pull Force: 41 kgs
- Base Diameter: 36mm
- Total Height: 47mm
- Hook Thread: M6
- Direction of Magnetism: Axially magnetised through the 7mm Base
- Style: Rare Earth pot magnet with removable threaded hook
- Magnet Coating: Nickel ( NiCuNi )
$12.50 INC GST
You save Add to cart
RUBBER BASE BOS D43 x 6.2 x M6
- Product Code: RERUBBOSD43
- Pull Force: 8.7 kgs
- Base Size: D43mm x h6.2mm
- Total Height = H: 21mm ( incl. 15mm threaded post )
- Post Thread: M6
- Style: Rubber Coated Rare Earth pot magnet with M6 external threaded post( bos )
- Coating: Rubber
Features: Rubber Coated Pots are best used in a shear position, rubber coated pot magnets have a superior slide resistance over regular magnets due to the increased friction generated between a rubber and smooth steel surface.
$8.25 INC GST
You save Add to cart
RUBBER BASE BOS D66 x 8.1 x M6
- - Product Code: RERUBBOSD66
  - Pull Force: 18.4 kgs
  - Base Size: D66mm x h8.1mm
  - Total Height =H : 31mm ( incl. 23mm threaded post )
  - Post Thread: M6
  - Style: Rubber Coated Rare Earth pot magnet with M6 external threaded post( bos )
  - Coating: Rubber
Features: Rubber Coated Pots are best used in a shear position, rubber coated pot magnets have a superior slide resistance over regular magnets due to the increased friction generated between a rubber and smooth steel surface.
$14.50 INC GST
You save Add to cart
RARE EARTH POT D32 EYELET
- Product Code: REPOTF32EYELET
- Pull Force: 34 kgs
- Base Diameter: 32mm
- Total Height: 47mm
- Eyelet Thread: M6
- Direction of Magnetism: Axially magnetised thru the 8mm Base
- Style: Rare Earth pot magnet with threaded eyelet
- Coating: Nickel ( NiCuNi )
$12.25 INC GST
You save Add to cart
RARE EARTH POT D42 EYELET
- Product Code: REPOTF42EYELET
- Pull Force: 68 kgs
- Base Diameter: 42mm
- Total Height: 48mm
- Eyelet Thread: M6
- Direction of Magnetism: Axially magnetised thru the 8mm Base
- Style: Rare Earth pot magnet with threaded eyelet
- Coating: Nickel ( NiCuNi )
$20.00 INC GST
You save Add to cart
MAGNETIC STUD FINDER D45 x 75
- Product Code: MAGSTUDLSED45
- Pull Force: 50 kgs
- Magnet Type: Neodymium D29mm x 23mm
- Total Base Diameter: D45mm x H25.5mm
- Total Height: 83mm including hook
- Hook Thread: M6
- Direction of Magnetism: Axially magnetised thru the 25.5mm Base
- Style: Rubber Encased pot magnet with removable threaded hook
- Magnet Coating: Nickel ( NiCuNi )
$19.00 INC GST
You save Add to cart
