Height 10mm - 14.9mm

Filter

Showing 1–18 of 35 results

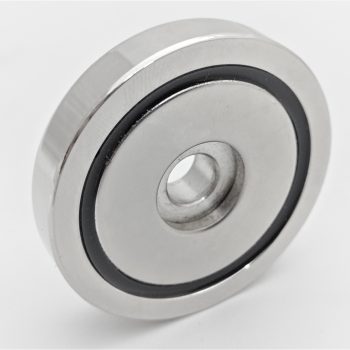

NEO REBATED D48 x iD8.5 x T11
- Product Code: REPOTB48REBATED
- Pull Force: 70 kgs
- Base Diameter: 48mm
- Total Height: 11mm
- Hole Size: 8.5mm
- Internal Flange Size: 15mm
- Direction of Magnetism: Axially magnetised through the 11mm Base
- Style: Rare Earth pot magnet with REBATED hole
- Grade: N35
- Coating: Nickel ( NiCuNi )
$16.00 - $22.00 INC GST Add to cart

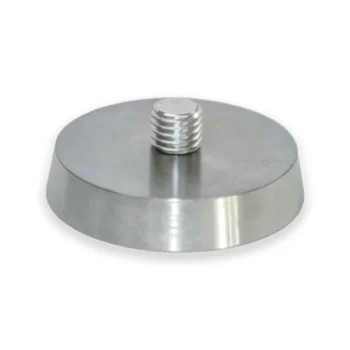

FIXING PLATE POT D64 x12x M12
- Product Code: REPOTFPD64
- Pull Force: 110 kgs
- Base Diameter: 64mm
- Total Base Height: 12mm
- Female Hole Size: M12mm
- Hollow Tube Male Thread Size: M12mm x 25mm ( included separately in box )
- Direction of Magnetism: Axially magnetised through the 12mm Base
- Style: Rare Earth pot magnet with removable male threaded M12 Tube.
- Grade: N35
- Coating: Zinc
$34.95 - $44.95 INC GST Add to cart
RARE EARTH D3 x 10 N42 GRADE
- Product Code: RED310
- Diameter: 3mm
- Height: 10mm
- Direction of Magnetism: Through Height
- Pull Off Force: 358 gms
- Gauss: 3500
- Coating: Nickel ( NiCuNi )
- Grade: N42
$0.52 - $0.99 INC GST Add to cart
RARE EARTH D5 x 10 N42 GRADE
- Product Code: RED510
- Diameter: 5mm
- Height: 10mm
- Direction of Magnetism: Through Height
- Pull Off Force: 1 kgs
- Gauss: 4350
- Coating: Nickel ( NiCuNi )
- Grade: N42
$1.10 - $1.00 INC GST Add to cart
RARE EARTH D8 x 10 N42 GRADE
- Product Code: RED810 N42
- Diameter: 8mm
- Height: 10mm
- Direction of Magnetism: Through Height
- Pull Off Force: 2.68 kgs
- Gauss: 4800
- Coating: Nickel ( NiCuNi )
- Grade: N42
$2.10 - $2.95 INC GST Add to cart
RARE EARTH D8 x 10 N48 GRADE
- Product Code: RED810 N48
- Diameter: 8mm
- Height: 10mm
- Direction of Magnetism: Through Height
- Pull Off Force: 3 kgs
- Gauss: 5300
- Coating: Nickel ( NiCuNi )
- Grade: N48
$2.95 - $3.40 INC GST Add to cart
RARE EARTH D10 x 10 N42 GRADE
- Product Code: RED1010
- Diameter: 10mm
- Height: 10mm
- Direction of Magnetism: Through Height
- Pull Off Force: 4 kgs
- Gauss: 5300
- Coating: Nickel ( NiCuNi )
- Grade: N42
$2.95 - $3.75 INC GST Add to cart
RARE EARTH D10 x 12 N42 GRADE
- Product Code: RED1012
- Diameter: 10mm
- Height: 12mm
- Direction of Magnetism: Through Height
- Pull Off Force: 4.2 kgs
- Gauss: 5400
- Coating: Nickel ( NiCuNi )
- Grade: N42
$3.15 - $4.00 INC GST Add to cart
Rare Earth Rod 12mm x 12mm N52
- Product Code: RED1212 N52
- Diameter: 12mm
- Height: 12mm
- Direction of Magnetism: Through Height
- Pull Off Force: 7.3 kgs
- Gauss: 5800
- Coating: Nickel ( NiCuNi )
- Grade: N52
$3.95 - $4.95 INC GST Add to cart
RE RING D25.4xiD9.5xH12.7 N42
- Product Code: RED25.4iD9.5H12.7
- Outer Diameter: 25.4mm
- Internal Diameter: 9.5mm
- Height: 12.7mm
- Countersunk : No
- Direction of Magnetism: Through Height
- Pull Off Force: 18 kgs
- Gauss: 4800
- Coating: Nickel ( NiCuNi )
- Grade: N42
$11.00 - $16.00 INC GST Add to cart

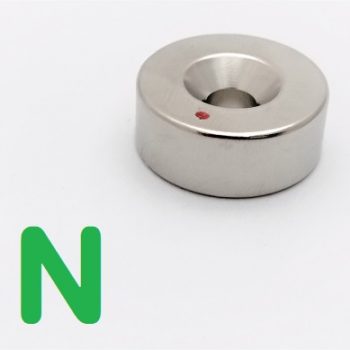

Ring D25mm x iD6.35 x H10mm N
- Product Code: RED25iD6.35H10N
- Outer Diameter: 25mm
- Internal Diameter: 6.35mm
- Height: 10mm
- Countersunk : Yes - North Face ( South Pairing is Available )
- Direction of Magnetism: Through Height
- Pull Off Force: 16.4 kgs
- Gauss: 4300
- Coating: Nickel ( NiCuNi )
- Grade: N42
$8.80 - $14.30 INC GST Select options This product has multiple variants. The options may be chosen on the product page
Ring D25mm x iD6.35 x H10mm S
- Product Code: RED25iD6.35H10S
- Outer Diameter: 25mm
- Internal Diameter: 6.35mm
- Height: 10mm
- Countersunk : Yes - South Face ( North Pairing is Available )
- Direction of Magnetism: Through Height
- Pull Off Force: 16.4 kgs
- Gauss: 4100
- Coating: Nickel ( NiCuNi )
- Grade: N42
$8.80 - $14.30 INC GST Select options This product has multiple variants. The options may be chosen on the product page
R/EARTH RING D35xID16xT10 N42
- Product Code: RED35iD16H10
- Outer Diameter: 35mm
- Internal Diameter: 16mm
- Height: 10mm
- Countersunk : No
- Direction of Magnetism: Through Height
- Pull Off Force: 22 kgs
- Gauss: 4250
- Coating: Nickel ( NiCuNi )
- Grade: N42
$16.00 - $20.00 INC GST Add to cart
R/E RING D42x iD20 xH10 N42
- Product Code: RED42iD20H10
- Outer Diameter: 42mm
- Internal Diameter: 20mm
- Height: 10mm
- Countersunk : No
- Direction of Magnetism: Through Height
- Pull Off Force: 25 kgs
- Gauss: 4250
- Coating: Nickel ( NiCuNi )
- Grade: N42
$18.00 - $27.50 INC GST Add to cart
RING D55xiD15xH10 N42 GRADE
- Product Code: RED55iD15H10
- Outer Diameter: 55mm
- Internal Diameter: 15mm
- Height: 10mm
- Countersunk : No
- Direction of Magnetism: Through Height
- Pull Off Force: 38.3 kgs
- Gauss: 3800
- Coating: Nickel ( NiCuNi )
- Grade: N42
$38.00 - $50.00 INC GST Add to cart
R/EARTH RING D62xiD5.5xH10 N42
- Product Code: RED62iD5.5H10
- Outer Diameter: 62mm
- Internal Diameter: 5.5mm
- Height: 10mm
- Countersunk : No
- Direction of Magnetism: Through Height
- Pull Off Force: 43 kgs
- Gauss: 3400
- Coating: Nickel ( NiCuNi )
- Grade: N42
$69.00 - $89.00 INC GST Add to cart
R/EARTH RING D62xiD5.5xH12 N42
- Product Code: RED62iD5.5H12
- Outer Diameter: 62mm
- Internal Diameter: 5.5mm
- Height: 12mm
- Countersunk : No
- Direction of Magnetism: Through 12mm Height
- Pull Off Force: 52 kgs
- Gauss: 4000
- Coating: Nickel ( NiCuNi )
- Grade: N42
$79.00 - $99.00 INC GST Add to cart
C/SUNK RINGD65xiD10.5xH10 N42
- Product Code: RED65iD10.5H10
- Outer Diameter: 65mm
- Internal Diameter: 10.5mm
- Height: 10mm
- Countersunk : Yes
- Direction of Magnetism: Through Height
- Pull Off Force: 44.4 kgs
- Gauss: 3400
- Coating: Nickel ( NiCuNi )
- Grade: N42
$95.00 INC GST Add to cart
