Description
REPOTFPD64mm x iD12 x H12
$34.95 - $39.95 INC GST
- Product Code: REPOTFPD64
- Pull Force: 110 kgs

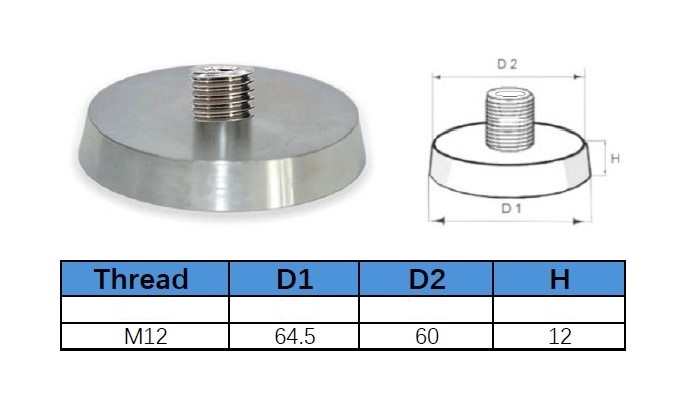

- Base Diameter: 64mm
- Total Base Height: 12mm
- Female Hole Size: M12mm

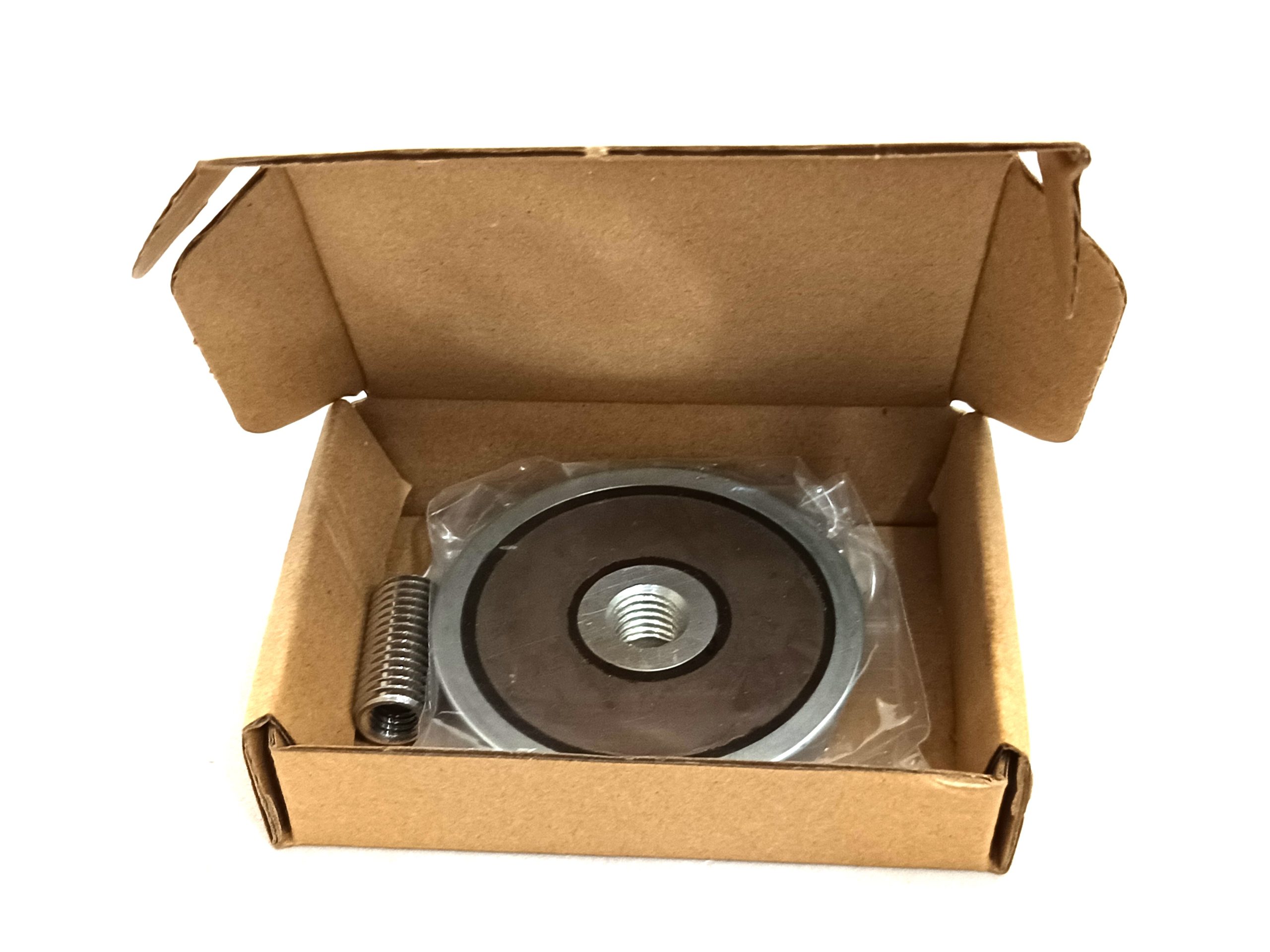

- Hollow Tube Male Thread Size: M12mm x 25mm ( included separately in box )
- Direction of Magnetism: Axially magnetised through the 12mm Base

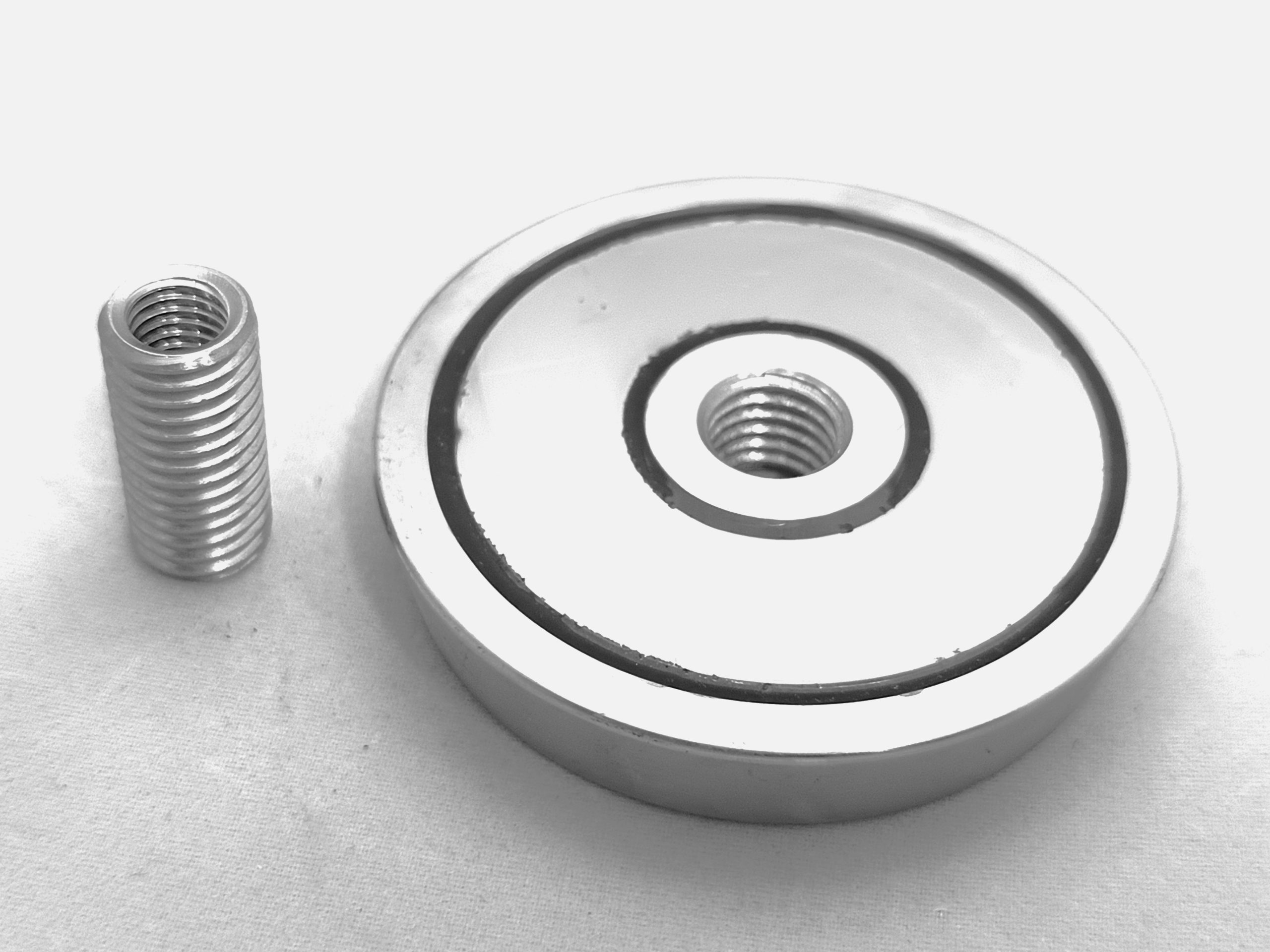

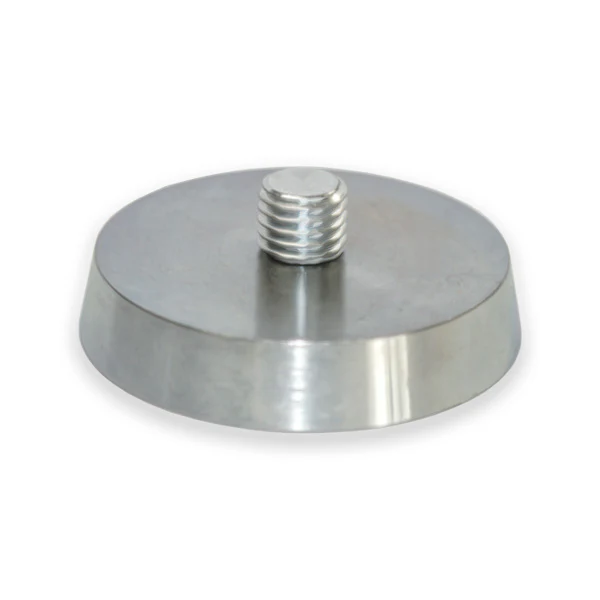

- Style: Rare Earth pot magnet with removable male threaded M12 Tube.
- Grade: N35
- Coating: Zinc
Manufacturers of prefabricated concrete panels use these Rare Earth Fixing Plates to hold steel forms in position when the moulds are being filled with concrete. After the concrete has dried the magnets are removed and can be reused again and again, which makes them a practical and economical solution.
In stock
