Rare Earth Rods

Standard magnet characteristics

All Rare Earth Magnets are SILVER, any image variation is due to monitor, or photo interpretation.

We describe a round magnet as a ROD only when the Height of the magnet is equal too or greater than the Diameter.

Magnetic
Properties

Magnetization Direction:  Axially Magnetised

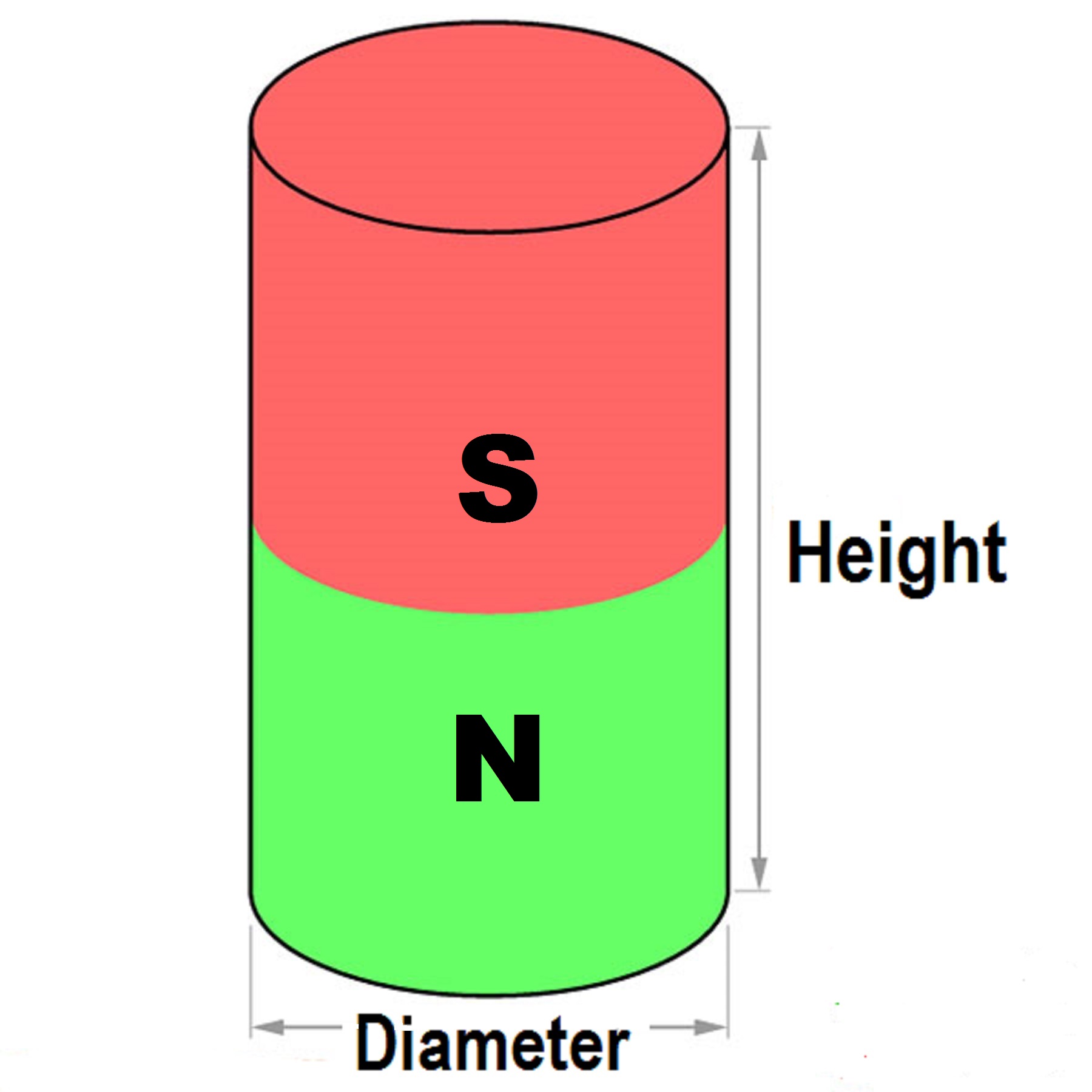

Size: D & H = Diameter & Height

Temperature Range:
– 196°C / + 80°C

Filter by:

Click on the product image to reveal quantity discounts

  •

    Rare Earth Rod 2mm x 2mm

    • Product Code: RED22
    • Diameter: 2mm
    • Height: 2mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 220 gms
    • Gauss: 2500
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $0.15 - $0.33 INC GST Add to cart

  • Rare Earth Rod 3mm x 3mm

    • Product Code: RED33
    • Diameter: 3mm
    • Height: 3mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 270 gms
    • Gauss: 3700
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $0.22 - $0.45 INC GST Add to cart

  • R/Earth Rod 3mm x 6mm N48

    • Product Code: RED36  N48
    • Diameter: 3mm
    • Height: 6mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 394 gms
    • Gauss: 4500
    • Coating: Nickel ( NiCuNi )
    • Grade: N48
    $0.35 - $0.75 INC GST Add to cart

  • Rare Earth Rod 3mm x 4mm

    • Product Code: RED34
    • Diameter: 3mm
    • Height: 4mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 299 gms
    • Gauss: 3800
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $0.22 - $0.50 INC GST Add to cart

  • Rare Earth Rod 3mm x 10mm

    • Product Code: RED310
    • Diameter: 3mm
    • Height: 10mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 358 gms
    • Gauss: 3500
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $0.52 - $0.99 INC GST Add to cart

  • Rare Earth Rod 3mm x 15mm

    • Product Code: RED315
    • Diameter: 3mm
    • Height: 15mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 362 gms
    • Gauss: 4000
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $1.25 - $1.75 INC GST Add to cart

  • Rare Earth Rod 4mm x 4mm N45

    • Product Code: RED44  N45
    • Diameter: 4mm
    • Height: 4mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 580 gms
    • Gauss: 4100
    • Coating: Nickel ( NiCuNi )
    • Grade: N45
    $0.38 - $0.78 INC GST Add to cart

  • Rare Earth Rod 4mm x 5mm

    • Product Code: RED45
    • Diameter: 4mm
    • Height: 5mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 612 gms
    • Gauss: 4000
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $0.40 - $0.85 INC GST Add to cart

  • Rare Earth Rod 4mm x 20mm

    • Product Code: RED420
    • Diameter: 4mm
    • Height: 20mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 712 gms
    • Gauss: 4300
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $1.50 - $2.40 INC GST Add to cart

  • Rare Earth Rod 5mm x 10mm

    • Product Code: RED510
    • Diameter: 5mm
    • Height: 10mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 1 kgs
    • Gauss: 4350
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $1.10 - $1.60 INC GST Add to cart
  • Sale!SALE !

    R/Earth Rod 6.35mmx 6.35mm N50

    • Product Code: RED6.356.35  N50
    • Diameter: 6.35mm
    • Height: 6.35mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 1.8  kgs
    • Gauss: 4700
    • Coating: Nickel ( NiCuNi )
    • Grade: N50
    Original price was: $0.98.Current price is: $0.69. INC GST Add to cart

  • Rare Earth Rod 6mm x 6mm

    • Product Code: RED66
    • Diameter: 6mm
    • Height: 6mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 1.35  kgs
    • Gauss: 4250
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $0.52 - $0.80 INC GST Add to cart

  • Rare Earth Rod 6mm x 15mm

    • Product Code: RED615
    • Diameter: 6mm
    • Height: 15mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 1.6  kgs
    • Gauss: 4250
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $2.25 - $3.00 INC GST Add to cart

  • Rare Earth Rod 6mm x 25mm

    • Product Code: RED625
    • Diameter: 6mm
    • Height: 25mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 1.68  kgs
    • Gauss: 4400
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $3.60 - $4.75 INC GST Add to cart

  • Rare Earth Rod 6mm x 30mm

    • Product Code: RED630
    • Diameter: 6mm
    • Height: 30mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 1.70  kgs
    • Gauss: 5400
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $4.10 - $5.25 INC GST Add to cart

  • Rare Earth Rod 6mm x 50mm

    • Product Code: RED650
    • Diameter: 6mm
    • Height: 50mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 1.75  kgs
    • Gauss: 4400
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $5.50 - $8.00 INC GST Add to cart

  • Rare Earth Rod 8mm x 8mm N52

    • Product Code: RED88  N52
    • Diameter: 8mm
    • Height: 8mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 3.1 kgs
    • Gauss: 5200
    • Coating: Nickel ( NiCuNi )
    • Grade: N52
    $1.60 - $2.50 INC GST Add to cart

  • Rare Earth Rod 8mm x 10mm

    • Product Code: RED810  N42
    • Diameter: 8mm
    • Height: 10mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 2.68 kgs
    • Gauss: 4800
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $2.10 - $2.95 INC GST Add to cart

  • Rare Earth Rod 8mm x 10mm N48

    • Product Code: RED810 N48
    • Diameter: 8mm
    • Height: 10mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 3 kgs
    • Gauss: 5300
    • Coating: Nickel ( NiCuNi )
    • Grade: N48
    $2.95 - $3.35 INC GST Add to cart

  • Rare Earth Rod 8mm x 25mm

    • Product Code: RED825
    • Diameter: 8mm
    • Height: 25mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 3 kgs
    • Gauss: 5200
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $3.80 - $4.95 INC GST Add to cart

  • Rare Earth Rod 8mm x 30mm

    • Product Code: RED830
    • Diameter: 8mm
    • Height: 30mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 3.1 kgs
    • Gauss: 5500
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $4.00 - $5.50 INC GST Add to cart

  • Rare Earth Rod 8mm x 40mm

    • Product Code: RED840
    • Diameter: 8mm
    • Height: 40mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 3.2 kgs
    • Gauss: 5700
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $5.95 - $6.50 INC GST Add to cart

  • Rare Earth Rod 10mm x 10mm

    • Product Code: RED1010
    • Diameter: 10mm
    • Height: 10mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 4 kgs
    • Gauss: 5300
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $2.95 - $3.75 INC GST Add to cart

  • Rare Earth Rod 10mm x 12mm

    • Product Code: RED1012
    • Diameter: 10mm
    • Height: 12mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 4.2 kgs
    • Gauss: 5400
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $3.15 - $4.00 INC GST Add to cart

  • Rare Earth Rod 10mm x 16mm

    • Product Code: RED1016
    • Diameter: 10mm
    • Height: 16mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 4.3 kgs
    • Gauss: 5250
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $3.95 - $5.50 INC GST Add to cart

  • Rare Earth Rod 10mm x N42

    • Product Code: RED1020  N42
    • Diameter: 10mm
    • Height: 20mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 4.5 kgs
    • Gauss: 5100
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $4.85 - $6.60 INC GST Add to cart

  • Rare Earth Rod 10mm x 25mm

    • Product Code: RED1025
    • Diameter: 10mm
    • Height: 25mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 4.6 kgs
    • Gauss: 5500
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $5.95 - $7.70 INC GST Add to cart

  • Rare Earth Rod 10mm x 50mm

    • Product Code: RED1050
    • Diameter: 10mm
    • Height: 50mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 4.7 kgs
    • Gauss: 5900
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $8.95 - $11.00 INC GST Add to cart

  • Rare Earth Rod 12mm x 12mm N52

    • Product Code: RED1212  N52
    • Diameter: 12mm
    • Height: 12mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 7.3 kgs
    • Gauss: 5800
    • Coating: Nickel ( NiCuNi )
    • Grade: N52
    $3.95 - $4.95 INC GST Add to cart

  • Rare Earth Rod 15mm x 15mm

    • Product Code: RED1515
    • Diameter: 15mm
    • Height: 15mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 9.5 kgs
    • Gauss: 5450
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $7.70 INC GST Add to cart

  • Rare Earth Rod 15mm x 30mm

    • Product Code: RED1530
    • Diameter: 15mm
    • Height: 30mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 10.9 kgs
    • Gauss: 5700
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $8.50 - $10.00 INC GST Add to cart

  • Rare Earth Rod 19mm x 38mm

    • Product Code: RED1938
    • Diameter: 19mm
    • Height: 38mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 17  kgs
    • Gauss: 6000
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $17.00 - $20.00 INC GST Add to cart

  • Rare Earth Rod 20mm x 100mm N52

    • Product Code: RED20100N52
    • Diameter: 20mm
    • Height: 100mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 35  kgs
    • Gauss: 7000
    • Coating: Nickel ( NiCuNi )
    • Grade: N52
    $99.00 - $135.00 INC GST Add to cart

  • Rare Earth Rod 20mm x 20mm

    • Product Code: RED2020
    • Diameter: 20mm
    • Height: 20mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 16.4  kgs
    • Gauss: 5850
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $14.00 - $18.00 INC GST Add to cart

  • Rare Earth Rod 22mm x 25mm

    • Product Code: RED2225
    • Diameter: 22mm
    • Height: 25mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 21  kgs
    • Gauss: 5550
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $17.00 - $24.00 INC GST Add to cart

  • Rare Earth Rod 25mm x 25mm

    • Product Code: RED2525
    • Diameter: 25mm
    • Height: 25mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 26.7  kgs
    • Gauss: 5600
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $17.00 - $30.00 INC GST Add to cart

  • Rare Earth Rod 40mm x 40mm

    • Product Code: RED4040
    • Diameter: 40mm
    • Height: 40mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 75  kgs
    • Gauss: 5950
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $60.00 - $85.00 INC GST Add to cart

  • Rare Earth Rod 50.8mm x 50.8mm N42

    • Product Code: RED50.850.8
    • Diameter: 50.8mm
    • Height: 50.8mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 138  kgs
    • Gauss: 6250
    • Coating: Nickel ( NiCuNi )
    • Grade: N42
    $199.00 - $249.00 INC GST Add to cart

  • Rare Earth Rod 50.8mm x 50.8mm N48

    • Product Code: RED50.850.8
    • Diameter: 50.8mm
    • Height: 50.8mm
    • Direction of Magnetism: Through Height
    • Pull Off Force: 158  kgs
    • Gauss: 6350
    • Coating: Nickel ( NiCuNi )
    • Grade: N48
    $299.00 INC GST Add to cart
