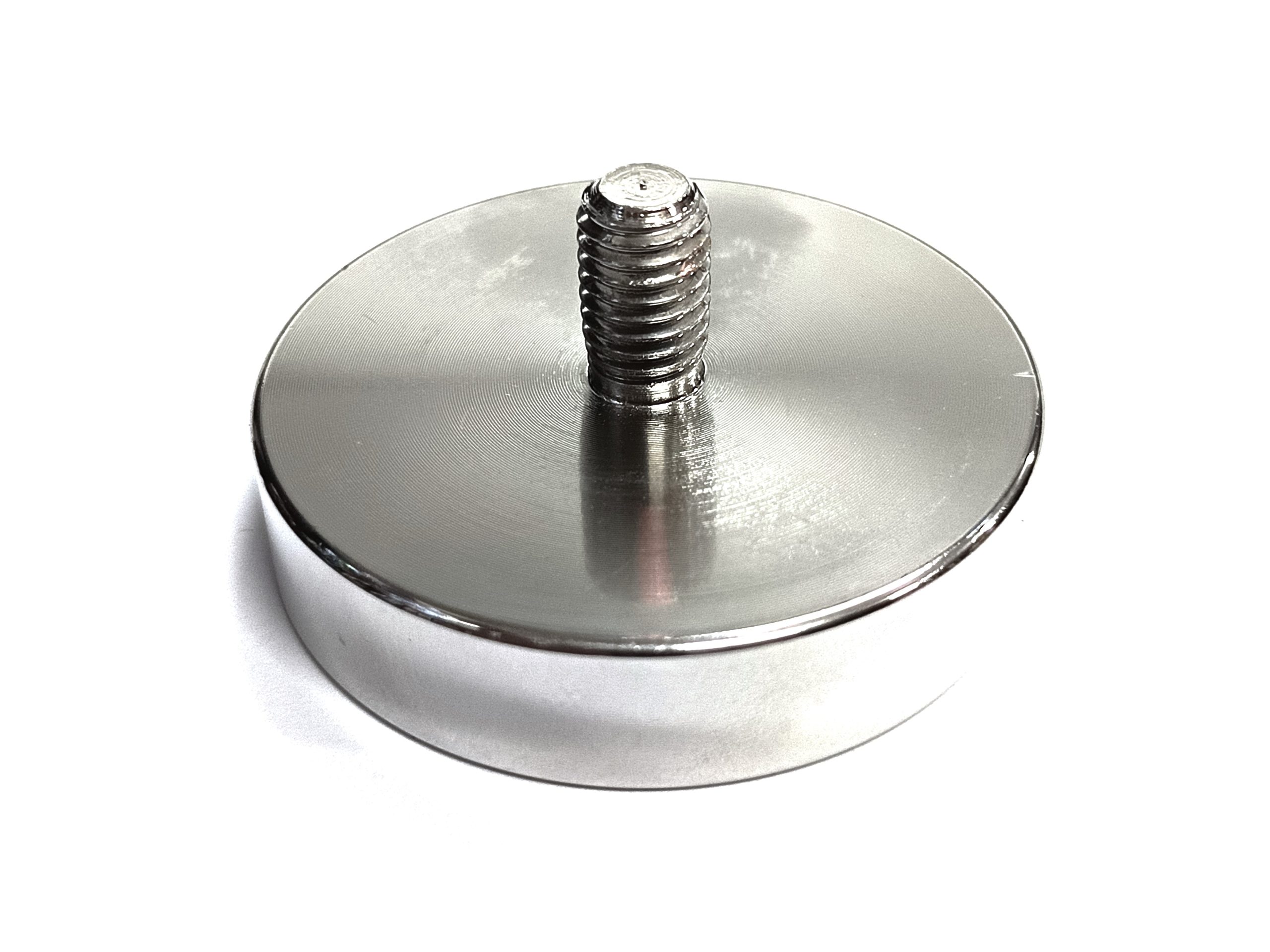

REPOTC48 x 24 M8 Threaded Bos
REPOTC48 x 24 M8 Threaded Bos
REPOTC48 x 24 M8 Threaded Bos
REPOTC48 x 24 M8 Threaded Bos


REPOTC48 x 24 M8 Threaded Bos

$14.00 - $25.00 INC GST

  • Product Code: REPOTc48
  • Pull Force: 80 kgs
  • Base Diameter: 48mm
  • Base Height: 11mm
  • Total Height: 24mm
  • Bos Height: 13mm
  • Thread Size: M8
  • Direction of Magnetism: Axially magnetised thru the 11mm Base
  • Style: Rare Earth pot magnet with metric 8mm threaded Bos
  • Grade: N35
  • Coating: Nickel ( NiCuNi  )

In stock

Quantity Discount (%) Price
1 - 19 — $25.00
20 - 99 32 % $17.00
100+ 44 % $14.00
x
SKU: REPOTC48 Category: Tags: , , ,


Description

Additional information

Weight 0.140 kg

Related products

  • RARE EARTH C/S POT A42 x 9

    RARE EARTH C/S POT A42 x 9

    • Product Code: REPOTA42C/SUNK
    • Pull Force: 37 kgs
    • Base Diameter -D: 42mm
    • Total Height -H: 9mm
    • Hole Size -D1: 6.5mm
    • Direction of Magnetism: Axially magnetised through the 9mm Base
    • Style: Rare Earth pot magnet with countersunk hole
    • Grade: N35
    • Magnet Coating: Nickel ( NiCuNi  )

    $10.00 - $15.00 INC GST Add to cart
  • RUBBER BASE BOS D88 x 8.5 x M8

    RUBBER BASE BOS D88 x 8.5 x M8

    • Product Code: RERUBBOSD88
    • Pull Force: 42 kgs
    • Base Size: D88mm x h8.5mm
    • Total Height=H: 23.5mm ( incl. 15mm threaded post )
    • Post Thread: M8
    • Style: Rubber Coated Rare Earth pot magnet with M8 external threaded post( bos )
    • Coating: Rubber
      Features: Rubber Coated Pots are best used in a shear position, rubber coated pot magnets have a superior slide resistance over regular magnets due to the increased friction generated between a rubber and smooth steel surface.
    $22.00 - $27.50 INC GST Add to cart
  • HOOK D60 x 15 - 28mm post

    HOOK D60 x 15 – 28mm post

    • Product Code: REPOTE60HOOK
    • Pull Force: 113 kgs
    • Base Diameter: 60mm
    • Total Height: 76mm
    • Hook Thread: M8
    • Direction of Magnetism: Axially magnetised through the 18mm Base
    • Style: Rare Earth pot magnet with removable threaded hook
    • Magnet Coating: Nickel ( NiCuNi  )
    $54.00 - $66.00 INC GST Add to cart

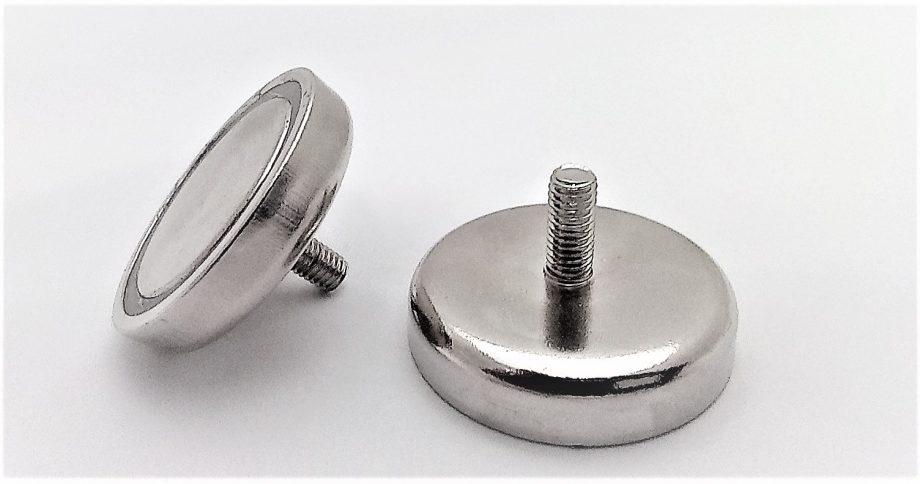

  • REPOTC42 x 20 M6 Threaded Bos
