MAG CHANNEL 13.5x40 x 5 17kg
MAG CHANNEL 13.5x40 x 5 17kg
MAG CHANNEL 13.5x40 x 5 17kg


MAG CHANNEL 13.5×40 x 5 17kg

$4.40 - $7.15 INC GST

  • Product Code: MAGCHAN40
  • L=Length: 40mm
  • L1=Hole centres: 30mm
  • W=Width: 13.5mm
  • H=Height: 5mm
  • D1=Fixing Holes: 3.3mm iD with countersunk
  • Direction of Magnetism: Through 5 mm Height ( countersunk side only )
  • Pull Off Force: 17 kgs
  • Coating: Nickel ( NiCuNi )
  • Grade: N35

In stock

Quantity Discount (%) Price
1 - 9 — $7.15
10 - 49 23.08 % $5.50
50 - 99 30.77 % $4.95
100+ 38.46 % $4.40
x
SKU: MAGCHAN40 Categories: , Tags: , , , , , ,


Description

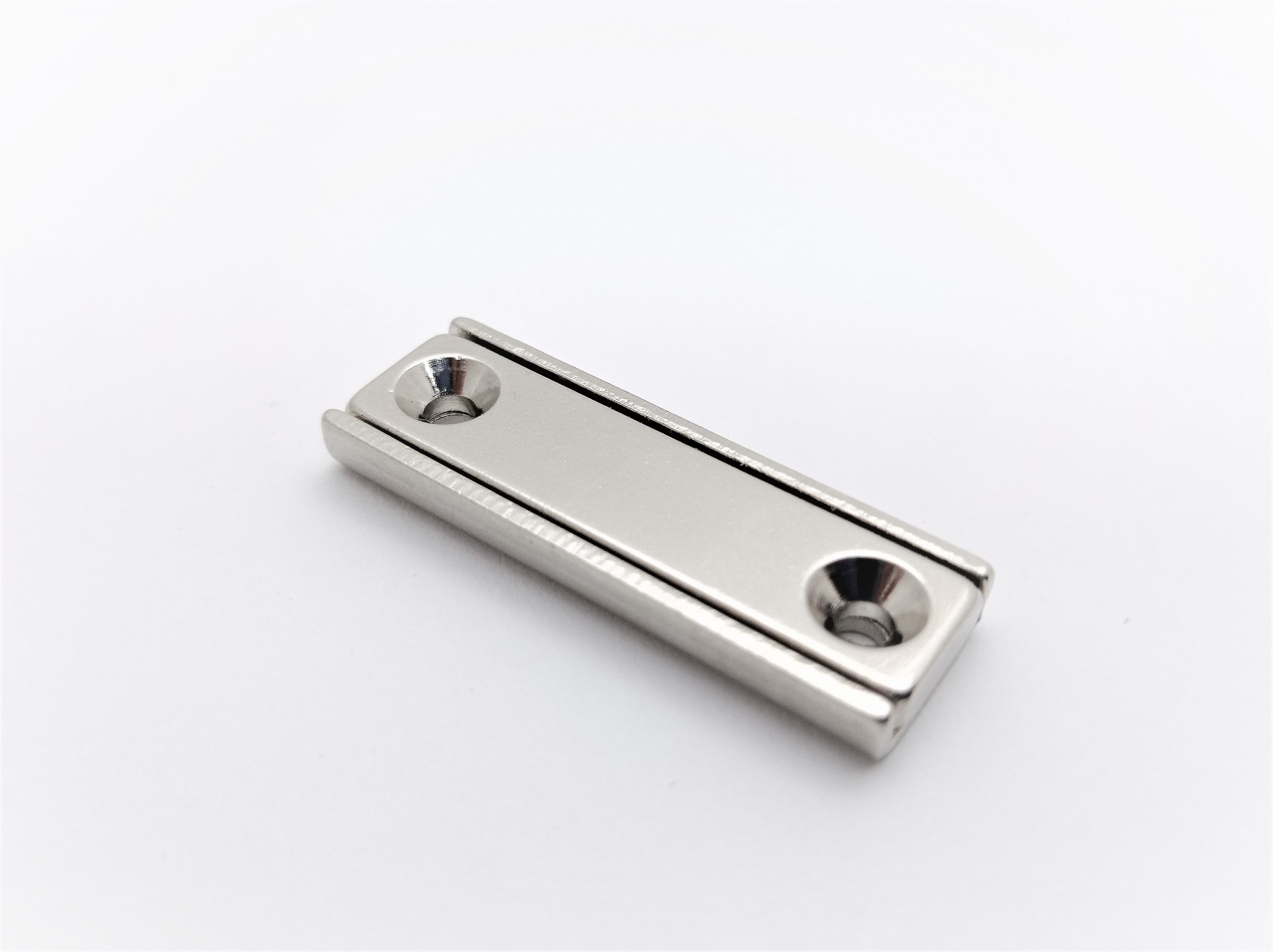

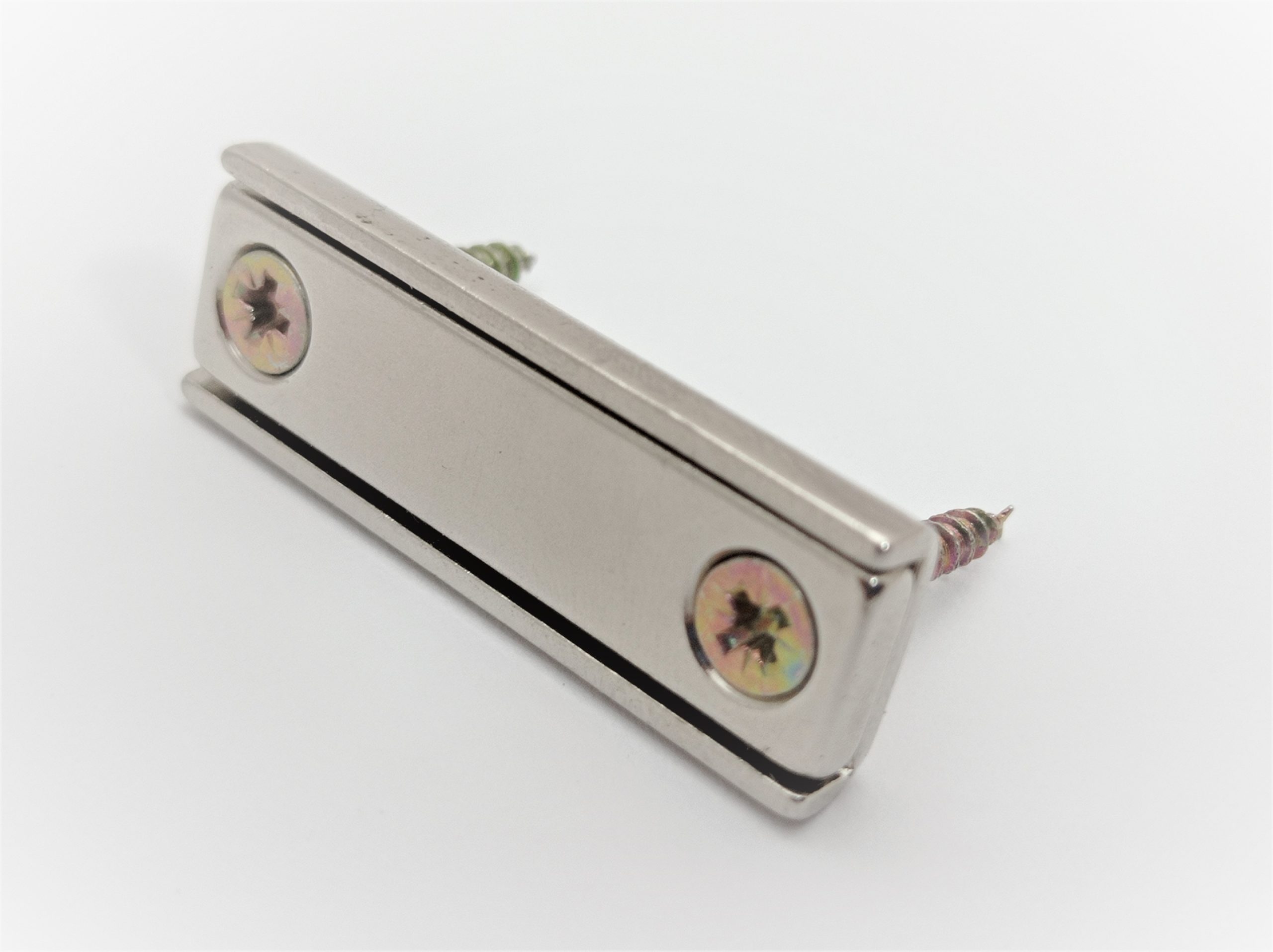

These rectangular Pot Magnets contain a super strong Neodymium block magnet, encased in a U-shaped steel channel. The steel channel not only protects the magnet from damage but also focuses the magnetic field to the uncapped countersunk face. The  power of the magnet is delivered through this one side of the pot magnet, and when this power side is in surface contact with a steel target, it has an extremely powerful holding force.

Additional information

Weight 0.018 kg
Dimensions 40 × 13.5 × 5 cm
