Channel Magnet (Countersunk)
/
MAGCHAN100mm x 13.5mm x 5mm

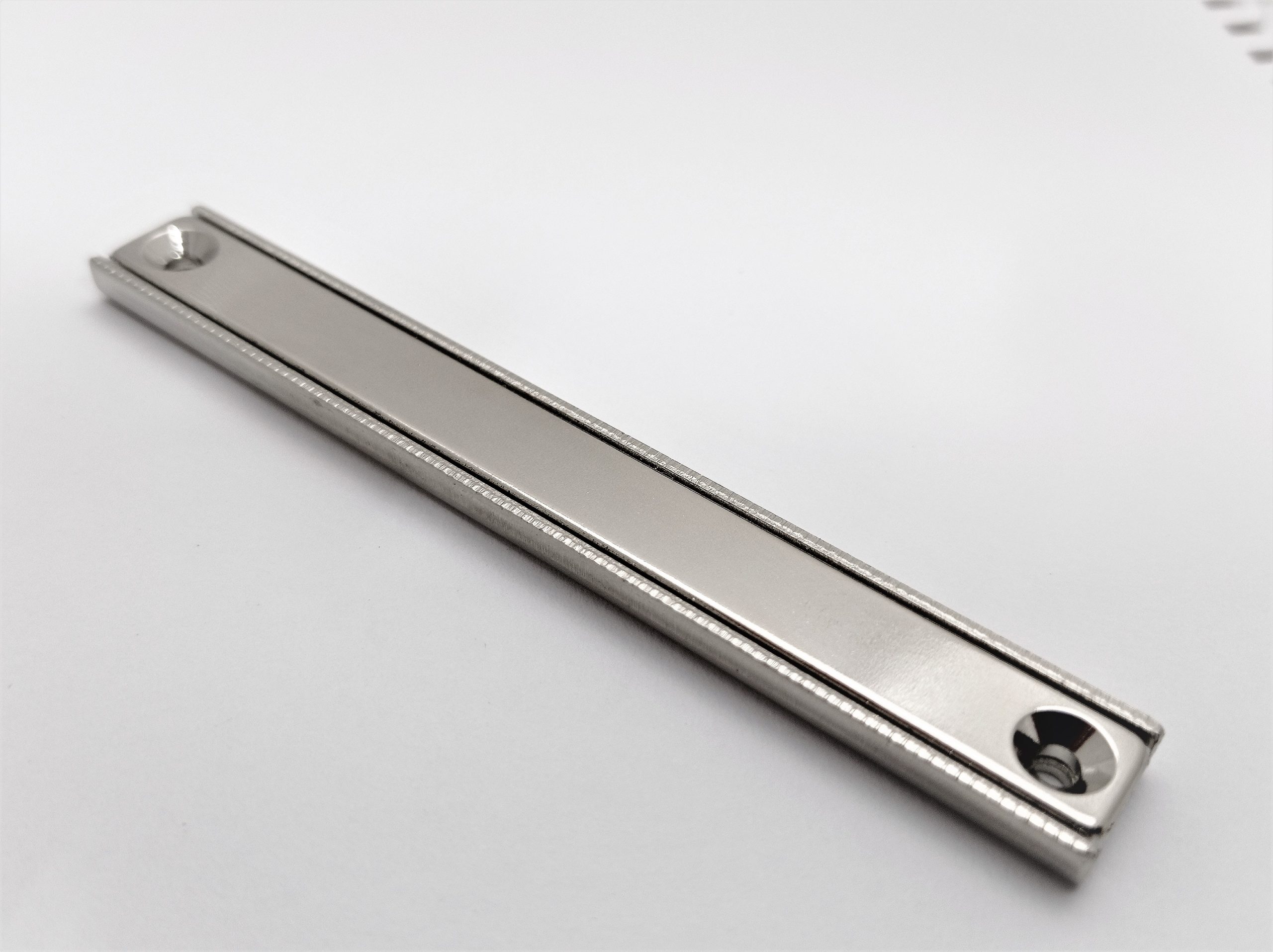

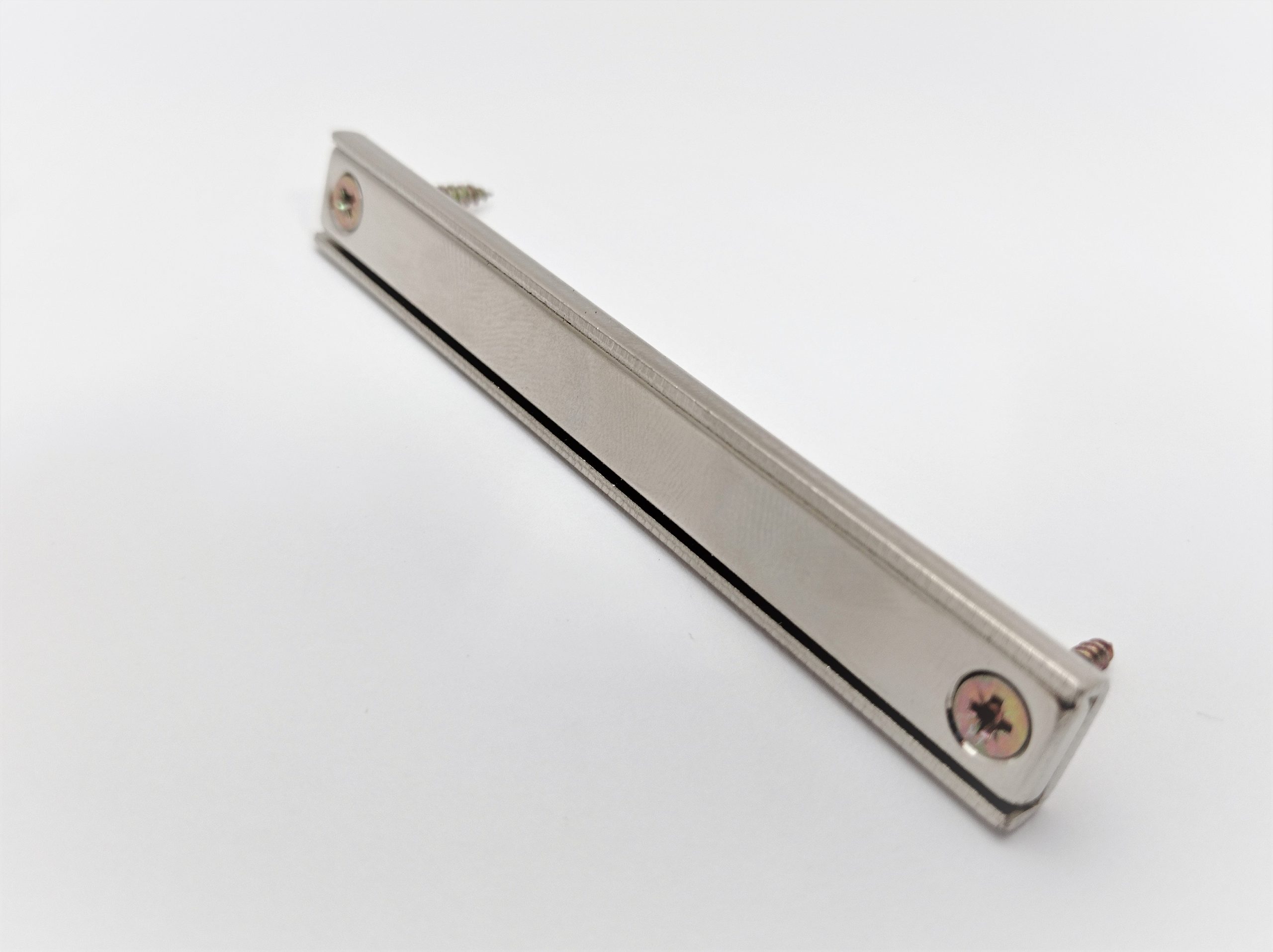

MAGCHAN100mm x 13.5mm x 5mm
$
9.90
-
$
14.30
INC GST
Product Code:
MAGCHAN100

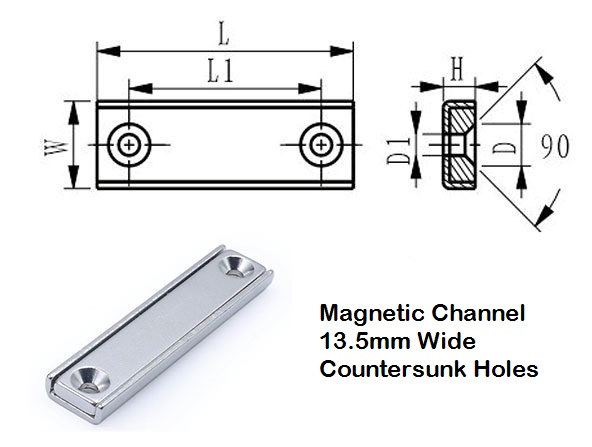

L=Length:
100mm
L1=Hole centres:
90mm
W=Width:
13.5mm
H=Height:
5mm
D1=Fixing Holes:
3.3mm id with countersunk
Direction of Magnetism:
Through 5 mm Height ( countersunk side only )
Pull Off Force:
36 kgs
Coating:
Nickel ( NiCuNi )
Grade:
N35
In stock
Quantity
Price
1 - 9
$
14.30
10 - 49
$
11.00
50 - 99
$
10.45
100+
$
9.90
Quantity
— OR —
Add to cart
x
SKU:
MAGCHAN100
Categories:
Channel Magnet (Countersunk)
,
Rare Earth Holding Pot
Tags:
100mm length
,
13.5mm width
,
35-40 kgs
,
5mm Height
,
Holding Pot
,
N35
Additional information
Additional information
Weight
0.05 kg
Related products
FER1006520-100mm x 65mm x 20mm
Product Code:
FER1006520
Length:
100mm
Width:
65mm
Height:
20mm
Direction of Magnetism:
Through 20mm Height
Pull Strength :
Approx 5 kgs
Gauss:
1100
Magnet Type:
Ferrite
$
12.00
-
$
16.50
INC GST
Add to cart

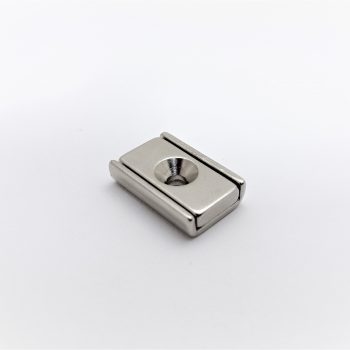

MAGCHAN20- 20mm x 13.5mm x 5mm
Product Code:
MAGCHAN20
L=Length:
20mm
W=Width:
13.5mm
H=Height:
5mm
D1=Fixing Holes:
3.3mm iD with countersunk
Direction of Magnetism:
Through 5 mm Height ( countersunk side only )
Pull Off Force:
8 kgs
Coating:
Nickel ( NiCuNi )
Grade:
N35
$
3.85
-
$
5.50
INC GST
Add to cart
MAGCHAN120mm x 13.5mm x 5mm
Product Code:
MAGCHAN120
L=Length:
120mm
L1=Hole centres:
110mm
W=Width:
13.5mm
H=Height:
5mm
D1=Fixing Holes:
3.3mm id with countersunk
Direction of Magnetism:
Through 5 mm Height ( countersunk side only )
Pull Off Force:
40 kgs
Coating:
Nickel ( NiCuNi )
Grade:
N35
$
12.50
-
$
17.00
INC GST
Add to cart
Ring D30mm x iD12 x H5mm
Product Code:
RED30iD12H5
Outer Diameter:
30mm
Internal Diameter:
12mm
Height:
5mm
Countersunk :
No
Direction of Magnetism:
Through Height
Pull Off Force:
11 kgs
Gauss:
3200
Coating:
Nickel ( NiCuNi )
Grade:
N42
$
9.50
-
$
11.00
INC GST
Add to cart
