Additional information
| Weight | 0.04 kg |
|---|

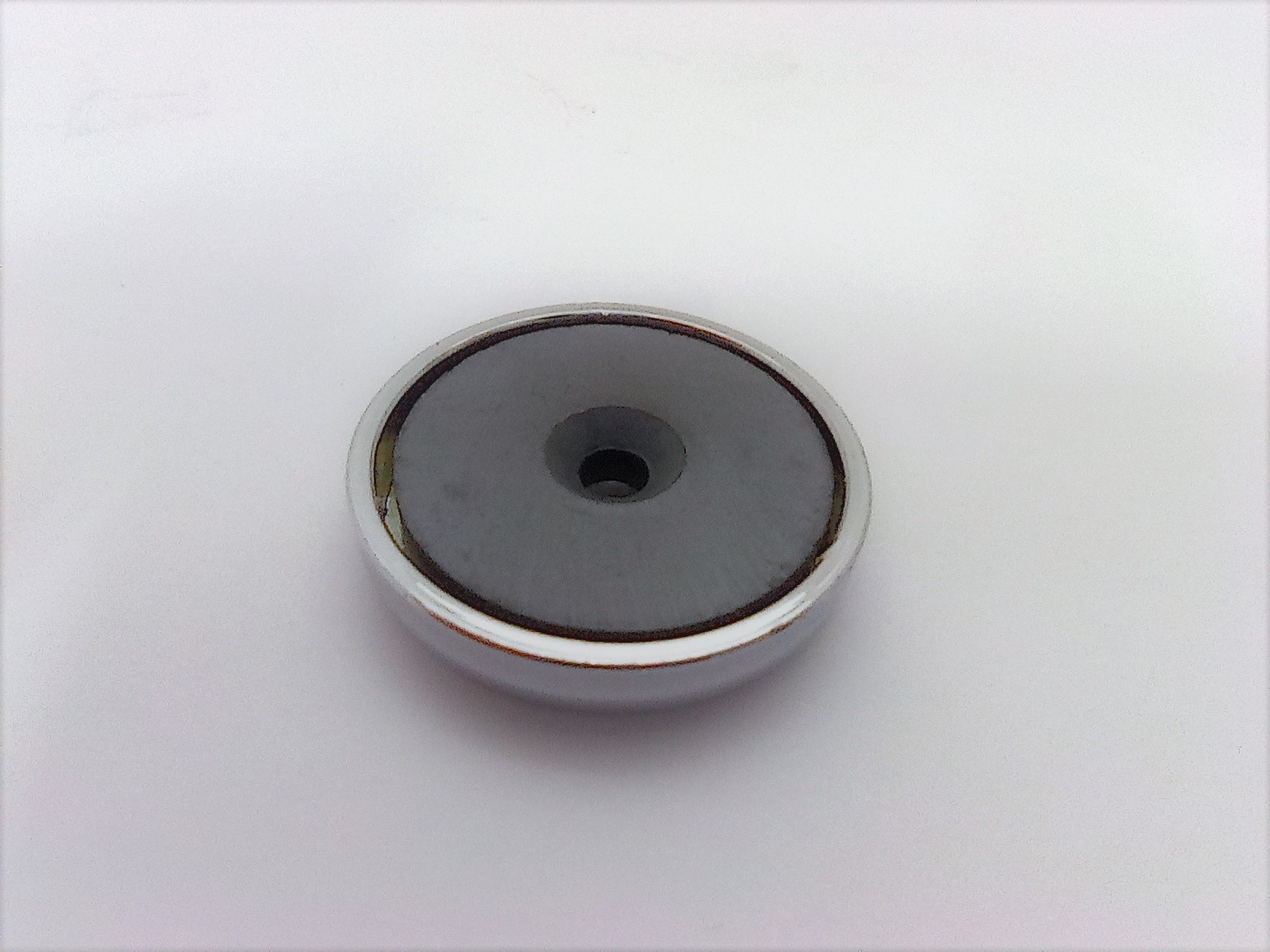

FERRITE CAPPED D32 x 7 x 4.8
$4.00 INC GST
- Product Code: FERCAPD32
- Pull Force: 4.9 kgs
- Base Diameter: 32mm
- Total Height: 7mm
- Hole Size: 4.8mm
- Direction of Magnetism: Magnetised thru the 7mm Base ( one side only )
- Style: Ferrite pot magnet with countersunk 4.8mm hole
In stock
Related products
-
FERRITE CAPPED D50 x 10 x 8
$5.00 - $7.00 INC GST Add to cart- Product Code: FERCAPD50
- Pull Force: 8 kgs
- Base Diameter: 50mm
- Total Height: 10mm
- Hole Size: Diameter 8mm
- Internal Flange Size: Diameter 21mm Rebated
- Direction of Magnetism: Magnetised thru the 10mm Base ( one side only )
- Style: Ferrite pot magnet with rebated 8mm hole
-
FERRITE DISC D30 x 7
$0.95 - $1.30 INC GST Add to cart- Product Code: FERD30 x 7
- Diameter: 30mm
- Height: 7mm
- Direction of Magnetism: Axially Through 7mm Height
- Gauss: 1100
-
FERRITE CAPPED D40 x 8 x 4.75
$4.50 - $5.00 INC GST Add to cart- Product Code: FERCAPD40
- Pull Force: 7 kgs
- Base Diameter: 40mm
- Total Height: 8mm
- Hole Size: 4.7mm
- Direction of Magnetism: Magnetised thru the 8mm Base ( one side only )
- Style: Ferrite pot magnet with countersunk 4.7mm hole
-
METAL RECEIVER D32 x ID4 x 3
$0.70 - $0.90 INC GST Add to cart- Product Code: WASHERD32
- Washer Diameter : D32mm
- Washer Thickness: 3mm
- Internal Hole Size : 4mm
- Countersunk: Yes
- Material : Zinc anneal unmagnetised steel washer
- The 3mm thickness of the washers is designed to accommodate a flat-head screw, so it does not sit proud and interfere with the required flat connection to the magnets surface.
- The 3mm thickness of the washer will also ensure that the magnet can achieve its full magnetic force, compared to using a standard thin washer.
